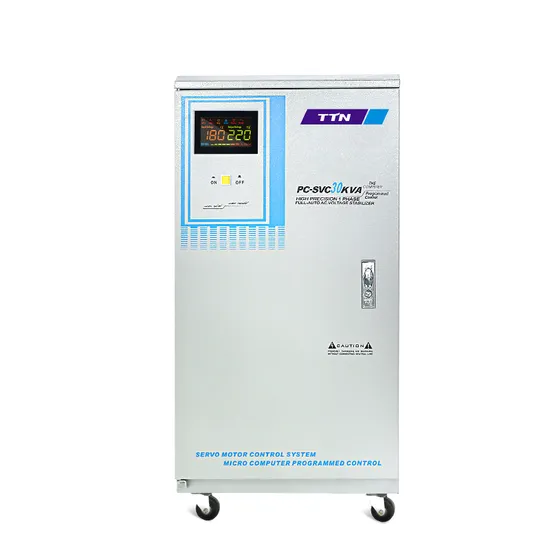

Ttn 150-260V AVR Single Phase Servo Motor Cabinet Voltage Stabilizer AC Automatic Voltage Regulator
| US$305.00 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
pc-svc-30kva
Frequency Characteristics
Intermediate Frequency
Usage
SVC
Frequency
Intermediate Frequency
Size
Medium
Iron Core Shape
Ring
Power Source
Switching Regulated Power Supply
Application Range
Industrial and Mining Enterprises
Brand
Ttn
Color
White and Black
Cetificate
CE, Soncap, ISO:9001...
Popular Market
Russia, Parkistan, Afganistan
Input Voltage
150-260V /120-240V/100-240V
Output Voltage
220V+-3%
Output Frequency
50/60Hz
Capacity
30000va
Effiency
90%
Package in One Carton
1PCS
Gross Weight
105.99
Model
PC-SVC-30000va
Delay Time
255/5
Protection
Overpressure/Over Load/Over Temperature
Circuit
Regulator/Bypass
Waveform Distortion
No Additional Wave Form Distortion
Transport Package
to Be Packed in Standard Exporting Carton
Specification
CE, ISO: 9001, SONCAP
Trademark
TTN, TINGLANG
Origin
Wenzhou, Zhejiang, China
HS Code
8504401990
Production Capacity
40000PCS/Month
Product Description
Our Advantages
I. Advantages of our products
1. High technology: programmed control computerized
2.Unique design: LED display which can show all protection functions.
3.Quality ensurance: every spareparts is made by ourself,for example,transforma,PCB.
4.Perfect protection function:over/low voltage protection,over-heat,over-load protection
5.High efficiency:more than 90%
6.experienced manufactory: more than 20 years
Product Parameters Feature:
Model: PC-SVS Series Servo Control single phase
Capacity: 10KVA~30KVA
Input voltage: AC150V~260V or customize
Output voltage: 220V+/-3%
Remark: pls kindly check the detail information in following chart
| Model | PC-SVC10000VA | PC-SVC15000A | PC-SVC20000VA | PC-SVC30000VA |
| Technology | Servo Motor Control Control System+Micro Computer Programmed Control | |||
| Led Display | Info | Input voltage/output voltage/Load Usage/Time Delay/Normal Working/Protection | ||
| Protection | Over voltage | output voltage>=243±4v | ||
| Low voltage | output voltage<=188±4v | |||
| Over loading | More than 120% | |||
| Over temperature | 120°±10% | |||
| Delay time | Short Time (5 seconds) | |||
| Circuit beaker | Regulator/bypass | |||
| Language | English/Russian/Chinese | |||
| Input Voltage | AC150-260V/120-240V/100-240V | |||
| Output Voltage | 220V±3% | |||
| Frequency | 50/60 HZ | |||
| Phase | Single Phase | |||
| Efficiency | >=90% | |||
| Ambient Temperature | -15°-45° | |||
| Relative Humidity | <95% | |||
| Waveform Distortion | no additional wave form distortion | |||
| Insulating Resistance | normal more than 2MΩ | |||
| Specification | ||||
| Power | 10000va | 15000va | 20000va | 30000va |
| Package Size(cm) | 43.0*45.0*72.0 | 42.0*47.5*83.5 | 42.0*47.5*83.5 | 50.5*50.0*85.0 |
| Package(pcs) | 1 | 1 | 1 | 1 |
| G.M.(kgs) | 54 | 66.8 | 72 | 105.9 |
SERVICE OCCASIONS:
Computer
Test equipment
Lighting equipment
Alarm and security system
X-ray equipment
Medical equipment
Duplicator
Broadcasting equipment
Numeric control machine tool
Industrial robot
Photographic processing equipment
Laboratory instrument
Hi-Fi equipment
