High Dust Holding Capacity 99.99% High-Temp. HEPA Deep-Pleat Filter

Product Description

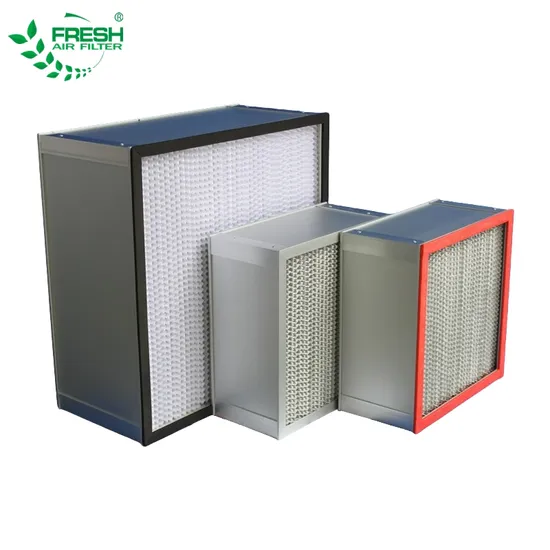

Deep Pleate High Temperature Resistants HEPA Filter with Stainless Steel Frame
Feature:
* High efficiency.
* Low airflow velocity resistance.
* Large dust capture capacity.
* High temp resistance, long life span in 250-450ºC working condition.
Application:
Commercial and industrial ventilation systems, endfilter of air conditioning systems.
1) Clean room fresh air conditioning system, end filter of clean room.
2) End filter of ventilation with high fire-proof/high temp resistance working condition.
3) Widely application in electronics, optics, semiconductor, coating, chemical, cosmetics, pharmacy, hospitals and automobile industries. Material & Features:
1) Filter material: Fiberglass, high temp resistance fiberglass filter paper.
2) Separators: Corrugated Aluminum foil.
3) Outer frame : Stainless steel frame (Aluminum alloy or galvanized steel for your option).
4) Sealant glue : high temperature resistance glue.
5) Sealant strip: high temperature resistance glue.
Technical Parameters:
1) Filtration grade: H10,H11,H12,H13,H14(EN779)
2) Porosity: particles≥0.5μm,≥0.3μm
3) Filter Efficiency: 99%,99.9%,99.99%,99.999%(ASHRAE52.1-1992)
4) Humidity resistance: ≤100%RH
5) Resistance to high temperature: ≤250ºC,≤350ºC,≤450ºC
6) Final resistance: (suggested) ≤600Pa.
Technical specification:

Dimension(mm)	Rated air flow (m3/h)	Initial Pressure Drop (Pa)			Filtration efficiency (%)
W*H*D		0.25m/s	0.5m/s	0.75m/s
320*320*220	400	≤120	≤220	≤240	99% 99.9% 99.99% 99.999%
484*484*220	1000
610*610*150	1000
630*630*220	1500
610*610*292	2000
Remarks: other specification to be customized

Product Display:
Test Report :
Workshop Production Flow-----SUPPER CLEAR ROOM
WHY CHOOSE US?
1. We have specialized in the export of air filters for over 14 years.
2. We have our own factory and brand.
3. We provide OEM and ODM service ,sample production and service according to your demand.
4. The dimension can be customized.
5. Our company have passed ISO9001 2008 and ISO9001 2015, ISO14001, ISO45001, ISOTS16949-2009.
6. The products have passed SGS certification, CE certification, UL900 certification.
7. With independent R&D and design capabilities.
