13 LCD Strip Display Screen

13 LCD Strip Display Screen

US$1.20 1 Piece (MOQ)

Basic Info.

Model NO.
VR
Touch Screen Type
Resistive
Type
Graphic
Response Time
1ms
Viewing Angle
TN＋FILM
Display Technology
TFT
DOT-Matrix Graphic LCD Module Type
Row/Column-Driven
LCD Drive Mode
Multiplex Drive LCD Module
Customized
Customized
Color
White
Weight
200g
Made
2023
Display Size
5inch
Transport Package
Carton
Specification
200x200x200CM
Trademark
jinchao
Origin
China
Production Capacity
10000

Product Description

Overview Essential details Type: TFT, TFT
Display Size: 5inch
Supplier Type: lcm
Place of Origin: Guangdong, China
Brand Name: Kingtech
resolution: 800x480
viewing direction: 12 O'clock
Can be customized: OEM and ODM welcome
Storage Temperature: -30ºC~80ºC
Brightness: 500nits
outline dimension: 120.7(W)*75.8(H)*2.9(T)
AA: 108(W)*64.80(H)
driver IC: ILI6122+ILI5960
Interface: 24-bit Parallel RGB Interface Supply Ability Supply Ability
8000000 Piece/Pieces per Month Packaging & delivery Packaging Details
Carton
Port
shenzhen / hongkong

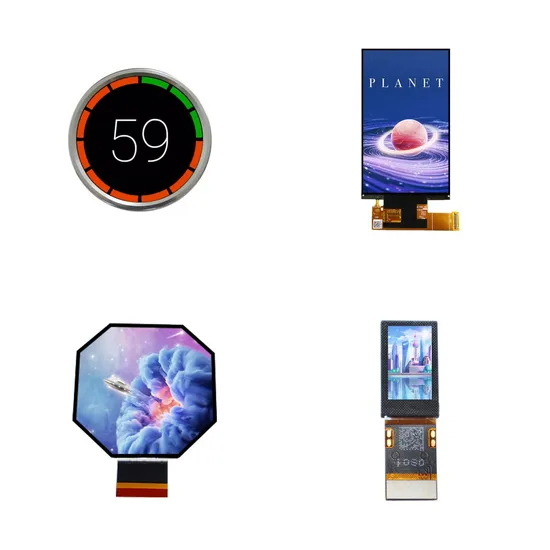

Picture Example:
Lead time:
Quantity(pieces) 1 - 10 11 - 1000 1001 - 3000 >3000
Lead time (days) 7 21 23 To be negotiated
For 10.1 inch, we have different models for customers choice. Such as 1280*800, 1024*600,800*1280, high temperature and brightness, normal temperature and brightness. MIPI, LVDS, RGB interface; USB and I2C capacitive touch, HDMI board For 10.1 inch, we have different models for customers choice. Such as 1280*800, 1024*600,800*1280, high temperature and brightness, normal temperature and brightness. Product Description
Module Display Main Parameters
Item kingtech 10.1 inch ips1280x800 display
Model No. PV10109LZR40G
Resolution 1280 x 800
Outline Dimension 229.80(W) x 149.00(H) x 5.95(T)
Active Area(mm) 216.96(W) x 135.60(H)
Interface 8-BIT LVDS Interface
Viewing Angle All
LED life 50000h
Display Mode Transmissive / Normally Black
Operating Temperature -30ºC to +80ºC
Storage Temperature -30ºC to +80ºC
Brightness 1000nits
Touch screen I2C / USB capacitive touch screen
Board HDMI board

Product Description
Item 500nit/1000 nit 5 inch tft lcd display
Model No PV0502LZR40D
Resolution 800*480
Outline Dimension 120.7*75.8*2.9
Active Area(mm) 108*64.80
Interface 24-bit Parallel RGB
Viewing Angle 12 o'clock
Driving IC ILI6122+ILI5960
Display Mode Transmission / Normally White
Operating Temperature -20ºC~70ºC
Storage Temperature -30ºC~80ºC
Brightness 500nits / 1000nits
Touch screen Resistive / capacitive touch screen
Board HDMI board
