Die Accessories Carbide Thimble Core Rod OEM Parts Mold Core Pin Thimble and Bushing Thimble Mold
Basic Info.
Application
Electronic, Hardware, Machinery, Daily Use, Furniture, Household Applicances, Car
Certification
GS, RoHS, CE, ISO9001
Hardness
92.1hra
Strength
3800MPa
Diameter
8mm(-0.005~+0.005)
Unground
Grinding H6, H7, H6.H7 Ect
Length
110(0~+0.5)
Surface
Polished
Transport Package
25kg. Carton
Specification
YL10.2
Trademark
ZZUP
Origin
Zhuzhou, Hunan, China
HS Code
820900100
Production Capacity
10000000PCS/Month
Product Description
Products description
1. Grade: YL10.2,YG10X,YG12X,YG15,YG20,YG10,YG8,YG8 etc.
2. diameter from 0.3mm~100mm,
3. length from 10mm~1000mm
4. tolerance for diameter (.-0.05~+0.05),tolerance for length (0~+0.2mm).
5. also can make angles of tips are 30º,60º,90º

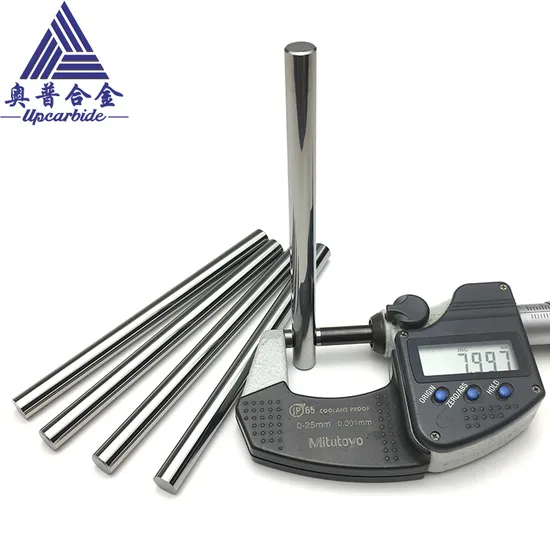

| Product Name | h6 Dia.8* L110mm Tungsten Carbide Rod |
| Material | tungsten carbide |
| Color | grey |
| Standard | DIN GB ISO JIS BA ANSI |
| Grade | YL10.2,YG10X,YG12X,YG15,YG20,YG10,YG8,YG8 etc |
| Brade | ZZUP |
| Grain size | 0.6um |
| Used | for milling 45HRC,50HRC,60HRA metals |
Products Show
Grade specification
| Grade | Density(g/cm3) | Hardness (HRA) | T.R.S (MPa) | Grain size (μm) | Composition (%) | Equal to ISO |
| YU12 | 14.1~14.15 | .≥92.5 | ≥4000 | 0.2~0.5 | 12% CO 88% WC | K40~K50 |
| YL10.2 | 14.4~14.6 | ≥92.2 | ≥4000 | 0.6~0.8 | 10% CO 90% WC | K20~K30 |
| YG6X | 14.85~15.0 | ≥92.0 | ≥3860 | 0.8~1.0 | 6% CO 94% WC | K05 |
| YG15 | 14.0~14.1 | ≥85.0 | ≥2800 | 1.2~2.0 | 15%Co 85% WC | K30~K40 |
| YG10 | 14.5~14.6 | ≥85.5 | ≥2600 | 1.2~2.0 | 10%Co 90% WC | K20 |
| YG8 | 14.65~14.85 | ≥89.5 | ≥2320 | 1.2~2.0 | 8% CO 92% WC | K20 |
| YG6 | 14.85~15.05 | ≥90.0 | ≥2150 | 1.2~2.0 | 6% CO 94% WC | K10 |
sizes and polished details
| Diameter(mm) | Length(mm) | grinding and polishing |
| 0.3~1.0 | 5~330 | h6,h7,H6 or H7 |
| 1.0~3.0 | 5~330 | h6,h7,H6 or H7 |
| 4.0~80 | 5~1000 | h6,h7,H6 or H7 |
Packing details
Shipping ways
Production process
company details
