Gusu Automatic Chocolate Chip Depositor for Efficient Chocolate Chips Making

Product Description

Product Description
Chocolate Chips Depositor
Product Description

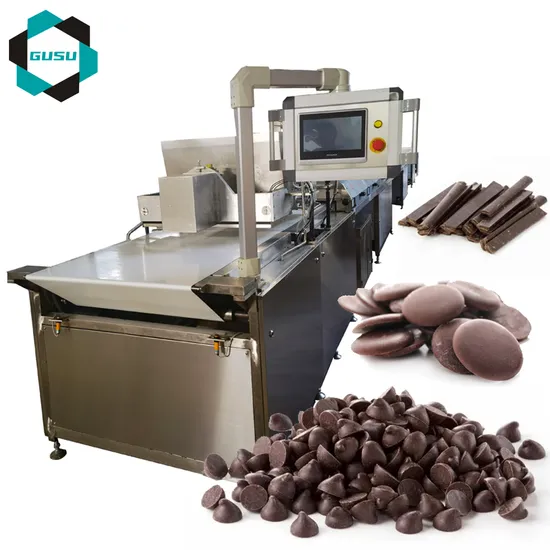

Gusu Chocolate Chip Depositor allows for the deposit of chocolate and chocolate compound drops and chips in a variety of shapes and weights, ranging from 0.1 to 5 grams. These types of products are ideal for industrial supply and subsequent melting, for decorating and for use in other products, especially cookies and ice creams.
The Chip Depositor Line includes a double-jacketed depositor head equipped with temperature control and a fixed-speed agitator. The movements of the head are coordinated with the belt used to collect the deposited products. The line also includes a belt-lifting system for deposit enabling diverse drop shapes. The drops are forwarded into cooling tunnel immediately after deposit.
Servo-controlled or Pneumatic-Driven depositor pistons enhanced measuring precision. Optimum tank size and double-jacketed water circulation system for efficient control of deposit temperatures. Easy to remove and clean chocolate agitator and tank. Stainless steel used for operating parts and all components that come into contact with the product. User-friendly screen with specially designed PLC control all of the operating parameters.
This highly versatile machine can be easily adapted to meet new products' needs, both in terms of design and of changes in shape or weight, simply by replacing the distributor board, a process that takes minutes to complete. It is available in a variety of belt widths, ranging from 400 to 1200mm.
Technical Parameter

Model	Belt Width(mm)	Drop Frequency(times/min)	Tunnel Temp.(ºC)	Total Power(kW	Weight(kg	Overall Size(mm)
QDJ600	600	12-15	0-10	9.02	1500	14000*950*1750
QD800	800	12-15	0-10	10.52	2000	16000*1150*1750
QDJ1200	1200	12-15	0-10	22.2	2500	16000*1550*1750
