50 mm Radial Drilling Machine Z3050*16 in Stock Machinical Transmission
| US$3,900.00-4,200.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z3050*16
Number of Shaft
3
Hole Diameter
50-100mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Weight
2000kg
Max.Drilling Diameter
50mm
Distance Between Spindle Axis and Column
335-1600mm
Rocker Swing Angle
180degree
Main Motor Power
4kw
Transport Package
Plywood Case
Specification
2080*820*2320mm
Trademark
white eagle
Origin
China
HS Code
8459290000
Production Capacity
10000/Month
Product Description
1.Z3050*16Features
Machinical transmission , Machinical speed ,Machinical clamping ,Machinical speed, Auto take-off and landing ,Auto feed
Specification
| Specification | Z3050*16 |
| Max.drilling diameter | 50mm |
| Distance between spindle axis and column | 335-1600 |
| Distance of headstock horizontal movement | 960mm |
| Distance spindle nose and working surface of base | 280-1170mm |
| Rocker arm lifting distance | 630mm |
| Spindle travel | 220mm |
| Spindle taper | MT5 |
| Range of spindle speeds | 75,130,240,350,1120 rpm |
| Range of spindle feeds | 0.1,0.16,0.25 mm |
| Max.mum permissble feed pressure of spindle | 6300 |
| Rocker arm lifting speed | 1.3 |
| Rocker swing angle | ±180° |
| Spindle motor power | 4KW |
| Elevating motor power | 0.75KW |
| Cooling pump motor power | 0.04KW |
| Machine weight | 2000KG |
| Overall dimension | 2080*820*2320mm |
2.Sthandard accessories:
| No. | Name | Specification | Qty | Remark |
| 1 | Machine | Z3050×16/1 | 1 | Elevating motor was dismantled, it need to be installed by user. |
| 2 | Table | 630×500×500 | 1 | It is on the base of the machine. |
| 3 | Hexagon nut | M24 | 12 pieces | There are 5 pieces on the machine. |
| 4 | Foundation bolt | M24×450 | 6 pieces | |
| 5 | T-slot bolt | M24 | 6 pieces | There are 5 pieces on the machine. |
| 6 | Washer | 24 | 12 pieces | There are 5 pieces on the machine. |

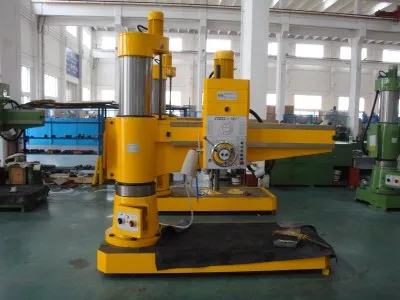

3.Machine photos
