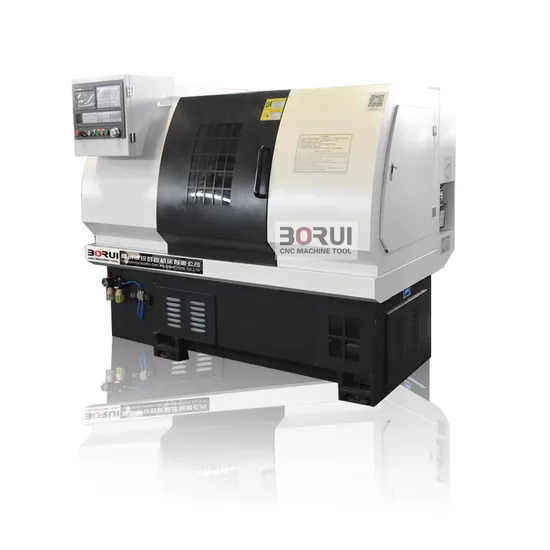

Ck6136 China Horizontal Type CNC Lathe Machine Tool Equipment Price

Product Description

CK6136 China Horizontal Type CNC Lathe Machine Tool Equipment Price
Product Description
CAK series CNC Lathe machine is and economical, practical type machine tools with good quality.The machine has a very wide use which is suitable for internal and external turning, tapering, circular arc, thread, boring, reaming of axis and disk workpiece. It also can achieve non-circular curve machining. You can choose the CNC system and optional accessories according to your requirement
Product main technical Specifications:

Specifications	CK6136	Units
Max.swing over bed	320	mm
Max. Swing over cross slide	110	mm
Max. Processing length	500	mm
X/Z travel	300/500	mm
Spindle bore	52	mm
Spindle speed	100-2000	rpm
Spindle motor	5.5	kw
Coolant pump motor	0.09	kw
X axis feed speed	1-1500	R/min
Z axis feed speed	100-3000	R/min
X axis rapid feed speed	500-4500	R/min
Z axis rapid feed speed	1000-5000	R/min
Tailstock sleeve travel	90	mm
Tailstock taper	MT4
Tool post type	4 station vertical tool post or 3 gang type tool post
Cutting tool shape size	20x20	mm
Machine dimension(LxWxH)	2000*1200*1620	mm
Net weight	1560	Kg

Standard Accessories: 1. Frequency Spindle
2. 250mm 3-jaw Manual Chuck
3. 4-station turret
4. Manual Tailstock
5. Full-splash Guard
6. Stepless speed change
Optional Accessories 1. Hydraulic Solid Chuck
2. Hydraulic Hollow Chuck
3. Hydraulic tailstock
4. 6-station turret
5. Center Rest and follow rest
6. 4-Jaw chuck
CNC Controller system: GSK; FANUC; Siemens; KND

Details Display
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
