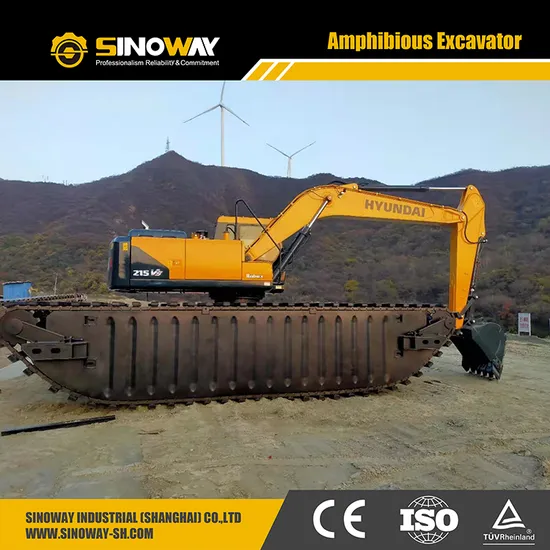

Hyundai Marsh Buggy 30 Ton Floating Swamp Buggy for Sale
| US$136,000.00-189,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SWEA220
Type
Crawler Excavator
Usage
Special Excavator, Marine Excavator, Mining Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
1.0~1.5m³
Size
Large-Scale
Certification
ISO9001: 2000, ISO14001
Condition
New
Engine
Doosan/Cummins
Hydraulic System
Doosan
Operating Weight
41.5 Ton
Chain Number
Three
Service Manhole
Optional
Transport Package
Nude
Specification
ISO2008
Trademark
SINOWAY
Origin
China
HS Code
84294090
Production Capacity
100 PCS / Year
Product Description
SINOWAY Swamp ExcavatorProduct Show
Machine Introduction
Specifications
| Engine | |
| Model | Cummins/Isuzu |
| Type | Six-cylinder,water-cooled turbocharged,mechanical injection |
| Rated power | 106~125KW |
| Rated speed | 2100rpm |
| Main Technical Specification | |
| Operating weight | 30000~42000Kg |
| Standard bucket capacity | 0.5~1.1m³ |
| Slewing speed 11rpm | 11rpm |
| Stick digging force | 110KN |
| Bucket digging force | 150KN |
| Main Features | |
| Tracked pontoon structure | |
| Big torque travelling device | |
| Big circular arc structure | |
| High capacity of fuel tank | |
| Main Applications | |
| River/Beach earth moving | |
| Swamp works | |
| Dredging applications | |
| Delta works | |
| Waterway deepening | |
| Hydraulic System | |
| Main pump | KAWASAKI |
| Main valve | KAWASAKI |
| Motor | KAWASAKI |
| Hydraulic flow rate | 2x235L/min |
| Hydraulic pressure | 32MPa |
| Travelling System | |
| Travelling speed | 0~5.4km/h |
| Grade ability | 65% |
| Ground pressure | 0.0135MPa |
| No. of chains | 3 |
| Dimensions | |
| Overall length | 11200mm |
| Overall width | 5350mm |
| Overall height | 3900mm |
| Ground clearance | 1192mm |
| Length of pontoon | 8500~10200mm |
| Width of pontoon | 1760mm |
| Height of pontoon | 1700mm |
| Operating Scope | |
| Stick length | 3000mm |
| A: Max. cutting height | 10980mm |
| B: Max. dumping height | 8140mm |
| C: Max. digging depth | 6940mm |
| D: Max. reach | 10290mm |
