Basic Info.
Horizontal Resolution
8MP@18fps 2880*1616@25fps
Kind
2.8mm/3.6mm/6mm Lens
Certification
CE, FCC, CCC, RoHS, ISO9001: 2000
Feature
Waterproof / Weatherproof, High Definition, Auto BLC, IP67 Waterproof
Remote Control
With Remote Control
Special Features
Face/Motion/Humanoid Detection
Customized Support
OEM/ODM/Customized Logo/Technical Support
Data Storage Options
Cloud, NVR
Application
Outdoor, Indoor
Place of Origin
Guangdong, China
Resolution
8MP@18fps ,2880*1616@25fps
Audio
Built-in Microphone
Night Vision
IR Distance 30m
Color
White or Black Is Optional
Transport Package
Neutral Packing
Trademark
G. Craftsman/OEM/ODM
Production Capacity
80000PCS/Month
Packaging & Delivery
Package Size
22.00cm * 13.00cm * 13.00cm
Package Gross Weight
0.700kg

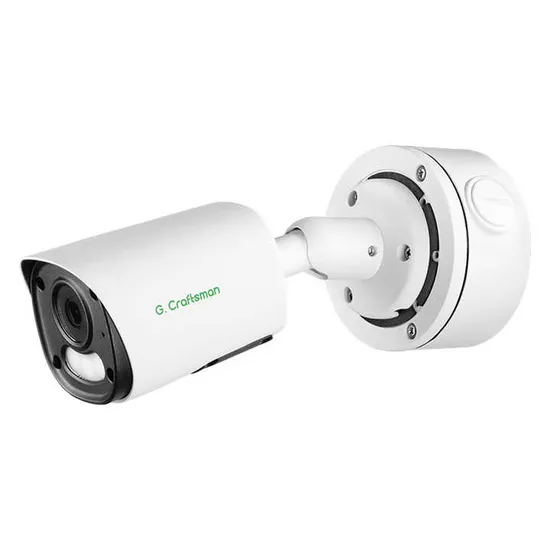

Product Description
AI Smart AnalyticsG.Craftsman AI Camera can intelligently filter objects to focus on human and face detection, which greatly enhances the monitoring efficiency and benefits the large population related industries such as public security, access control and business management.
Face Capture & Search G.Craftsman X Series Camera detects human faces in the monitoring scene and captures the snapshots. When the users playback to video recording, the Face Search function can sort small video clips immediately by different faces , which greatly helps users do a quick and accurate view. Starlight Ultra Low-light G.Craftsman adopts HD SONY IMX 335 Starvis Sensor, which is able to deliver high detailed color images even in the low light environments reaching 0.001Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting. 4K Video Viewing Experience Gcraftsman Camera delivers up to 4K resolution (3840*2160, effectively four times that of Full HD), providing users with
ultra-high-definition video viewing experience.
F1.6 Large Apertures G.Craftsman Camera is equipped with large apertures (F1.6) that allow 1.7 times more light to pass through than normal cameras, as the larger aperture could let more light passes through to the sensor, which tremendously improving image exposure. Flexible Lens Selection For Fixed-focus lens, G.Craftsman camera supports Flexible Lens selection among of 2.8mm(H:106.9°), 3.6mm(H:87.5°) and 6mm(H:65.5°) to meet various application scenarios. Better in details: IP67 Waterproof Supporting IP67-rated weather-proof, which are the leading level of the industry, the G.Craftsman Network Camera is well protected against rainy and foggy weather to ensure the performance.
Revolutionary IR Performance
To maximize the IR performance, the G.Craftsman Camera innovated both in the structure and technology. The advanced Smart IR II technology guarantees IR performance with adjustable illumination intensity. The infrared light transmittance is greatly increased with IR anti reflection panel which is well designed for better IR effect.
Unique Structure Design User friendly design of Microphone offer maximum enjoyment of usability and extensibility. The 3-axis screw-up bracket is so easy to mount the camera, Metal front cover perfectly solves heat dissipation of module.Cable with shielding layer and twined lines effectively shields interference and transmit stable signals.
Packing & Delivery
Quality camera and all of the accessories are well-packed with protective mat in the camera box. G.Craftsman uses hard & thick cartons with cornor pads to protect the cameras, especially the vibration test before shipment can ensure the goods arrive there in good condition.
Product Parameters
Camera |
lmage Sensor | 8 Mega Pixel,HD SONY IMX415 Sensor |
Min. lllumination | Color: 0.005Lux@F1.6; B/W: 0Lux with LED on |
Lens | 3.6mm Standard; 2.8mm/6mm Optional |
Electronic Shutter | AUTO, 1/25s ~ 1/100000s |
LED Type | Infared |
LED Distance | Up to 30m |
Day/Night | Day/Night/Auto/Customize/Schedule |
Image |
Image Enhancement | BLC, HLC, 2D/3D DNR |
WDR | 120dB Super WDR |
Image Settings | Rotate, Mirror, Privacy Mask, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance adjustable by client software or web browser |
Defog | Yes |
Video |
Max.lmage Resolution | 8 Mega Pixel |
Main Stream | 18FPS(3840*2160),25FPS(2592*1944,2560×1440,2304×1296,1920×1080,1280×720) |
Sub Stream | 25FPS (720×480,D1,VGA,640×360) |
Video Compression | H.265+/H.265/H.264 video encode,Support Bitrate 0.1M~8Mpbs;Support Frame rate 1~30 Fps/s; |
Video Bit Rate | 512Kbps - 6Mbps, VBR/CBR |
Audio |
Audio Standard | G.711-u/G.711-a |
Built-in Mic | Yes |
Built-in Speaker | Optional |
TF Card Slot | Optional |
Interface |
POE Port | RJ45 100mbps Network Port, IEEE802.3af PoE |
Power Connector | DC12V (Spare) |
Network |
Network Storage | NFS /NAS /FTP(Photo) |
Protocol | Supports network protocols such as HTTP/RTSP/DHCP/NTP/ONVIF/P2P/RTMP and multiple NVR docking protocols |
P2P Cloud Service | Yes |
System |
Local Storage | Support microSD Card Local Storage, up to 256G (Optional) |
Motion Detection | Yes |
Event Trigger Event Action | FTP Upload(Only Photo), SMTP Upload, SD Card Record,Alarm Server Center Upload |
Intelligent Analysis | Humanoid Detection, Face Detection,Vehicle Detection |
System Compatibility | Onvif (Profile S) |
Web Client Language | English, Russian, German, Italian,Turkish, Polish, Korean,Japanese,Slovenian, Traditional Chinese, Simplified Chinese etc. |
General |
Protection Level | Full Metal, IP67 |
Working Temperature | -40ºC~60ºC (-40 °F to 140 °F) |
Humidity Power Supply | 0~95%(Non-condensing) |
