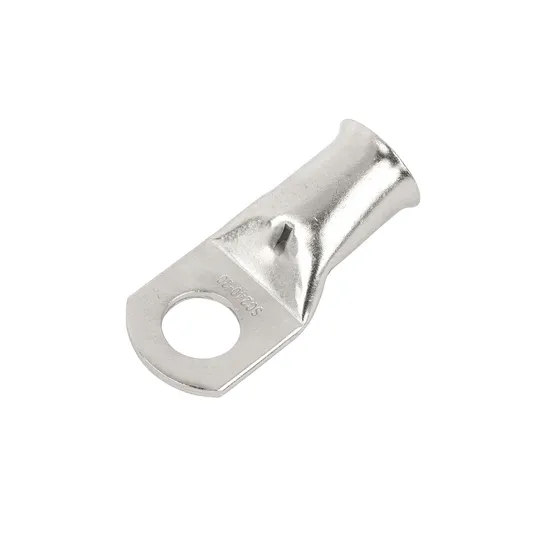

Heavy Duty Compression Terminal Cable Lug Without Expanding

Product Description

Product Description
About Products
1. Products Name: Compression terminals JM series
2. Body material: copper
3. Insulating Tube: non-insulation
4. Packing: 100pcs/bag, inner box and export carton
5. Color: natural
Detailed Photos

Item No.	Dimension			Lead Section	Description
	L	d	Φ
JGB6-5	24	3.8	5.2	6.0	Copper Lug JGB type Material: Copper
JGB6-6	24	3.8	6.5
JGB6-8	24	3.8	8.4
JGB10-6	25	5.0	6.5	10.0
JGB10-8	26	5.0	8.4
JGB10-10	28	5.0	10.3
JGB16-6	28.5	5.7	6.5	16.0
JGB16-8	30.5	5.7	8.4
JGB16-10	31.0	5.7	10.5
JGB25-6	33.5	7.2	6.5	25.0
JGB25-8	35	7.2	10.5
JGB25-10	35	7.2	10.5
JGB35-6	37.5	8.5	6.5	35.0
JGB35-8	38	8.5	8.5
JGB35-10	38	8.5	10.5
JGB35-12	39	8.5	13
JGB50-6	43.5	9.8	6.5	50.0
JGB50-8	45	9.8	8.5
JGB50-10	45	9.8	10.5
JGB50-12	45	9.8	13
JGB70-8	50	11.5	8.5	70.0
JGB70-10	51.5	11.5	10.5
JGB70-12	51.5	11.5	13
JGB95-10	58.5	13.7	10.5	95.0
JGB95-12	58.5	13.7	13
JGB120-10	65	15	10.5	120.0
JGB120-12	65	15	13
JGB120-14	65	15	14.7
JGB120-16	66.5	15	17
JGB150-10	73	16.7	10.5	150.0
JGB150-12	73	16.7	13
JGB150-14	73	16.7	14.7
JGB150-16	73	16.7	17
JGB185-12	80	19.2	13	185.0
JGB185-14	80	19.2	14.7
JGB185-16	80	19.2	17
JGB240-16	92.5	21	17	240.0
JGB240-20	92.5	21	21

About Factory Wenzhou Zhijie Electric Co., Ltd. is a professional manufacturer. Specialized in designing, development, production and marketing of various terminal studs, cold press terminals, connectors, spiral type street crimping caps and cable accessories. The company refer to Europeam and American technical requirements and quality development, the products have passed CE, ROHS and SGS.
The company boasts of advanced automation equipment and chek out test sets, high quality management team and employees of grass roots, all of these enable the company to establish good image of brand.
Abiding by the quality policy of promoting production with qulaity, seeking development with technologu, winning benefit with management, and attracting customers with credit standing, we sincerely hope to cooperate with friends from all social sectors at home and abroad, made development and creat brilliance together.
Package & Delivery
Related Terminals
