Large Gun Drilling Machine CNC Six-Axis Deep Hole Drilling Machine Cmd-1008-35.20

Product Description

Drilling is the most basic process in machining operation, is also the process with the most wide range in application field. Bench drill, miling machine, radial dill nd other traditional driling equipments have laborers' hands bound in the machine to repeat the work without quality.Security environment, efficiency and processing limis have influenced manufacturers and operators. With the arival of the CNC era,the birth of CNC depth drill has thoroughly changed the situation, it not only frees the laborers' hands, but also soves the botleneck of depth drll rocessing, and make it possible that one-time d rlling can achieve the processing quality of common drlling machine in drling, enlarging, expanding and also eaizes automatic chip removal, CNC positioning & automatic processing.

3 Axis CNC Deep Hole Drilling Machine	4 Axis Vertical CNC Deep Hole Drilling Machine	Multi-Spindle CNC Deep Hole Drilling Machine	6 Axis CNC Deep Hole Drilling Machine

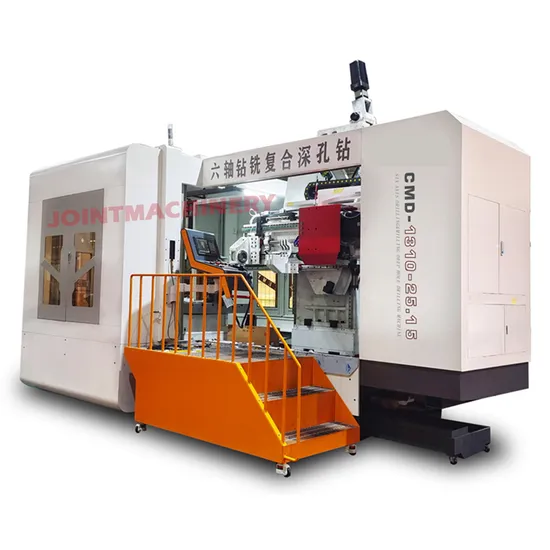

The CMD series six axis drilling and milling composite machine tool is a multifunctional machine tool that can process deep holes and milling. It's characteristic is equipped iwth a rotating workbench and a winging A-axis, which can perform precisjon machining of complex parts with inclined and double inclined holes, inclined and double inclined surfaces. It's applied in multiple fields.
Such as automotive mold manufactureing, engine cyliner blacok, shipbuilding, aerospace, petroleum hydraulics, new energy power, nuclear power and chemical engineering, etc. Especially the inclined top rod on the mold, the double inclined water parths of the hot forming mold, the hot runner plate, the engine cylinder body, the rolling roller, the rotary table, the flywheel, etc.
Large Gun Drilling Machine CNC Six-Axis Deep Hole Drilling Machine CMD-1008-35.20

Model	Unit	CMD-1008-35.20
Machining Capacity
Drilling diameter of gun drill	mm	3-40
Drilling diameter of single pipe drill	mm	/
Max drilling depth of gun drill (W)	mm	800
Machining Stroke
Left and right of workbench (X)	mm	1000
Sliding table stroke (Y)	mm	800
Column stroke (Z)	mm	500
Max drilling depth of gun drill (W)	mm	800
Swing axis rotation angle (A)	°	Upward 20°, and down to 35°
CNC rotary workbench (B)	°	360
CNC Indexing Table
Max loading capacity	kg	3000
Size (L*W)	mm	630*630
Spindle
Spindle taper capacity		BT40
Max spindle speed	rpm/min	6000
Power
Spindle motor	kw	11
X-axis feed servo motor	N.m	27
Y-axis feed servo motor	N.m	27
Z-axis feed servo motor	N.m	27
W-axis feed servo motor	N.m	20
A-axis feed servo motor	N.m	20
B-axis feed servo motor	N.m	20
Total power	kw	45
Cooling System (Gun Drill)
Coolant pressure range	mpa	2-15
Coolant flow range	L/min	6-85
Size & Weight
Machine size (L*W*H)	mm	6500*3800*2800
Machine weight (About)	kg	12000
System
Control system		Standard:FANUC / Optional:SYNTEC
Milling Ability
Milling range	mm	800+500
