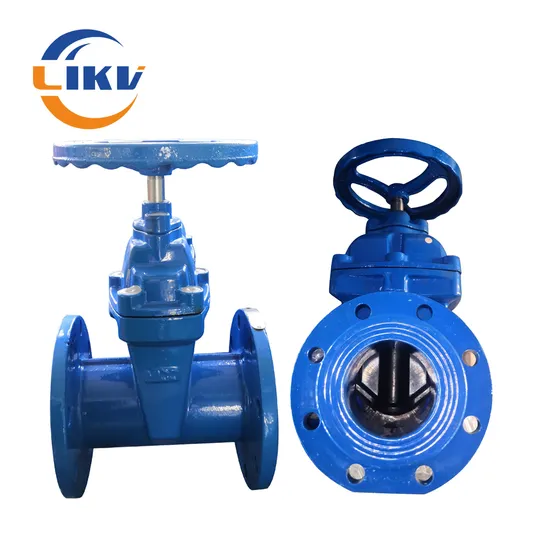

Class150 DN100 DIN3352 Resilient Seat Non Rising Stem Ductile Iron Gate Valve Nrs for Water

Product Description

Class150 DN100 DIN 3352 Resilient Seat Non Rising Stem Ductile Iron Gate Valve Basic Customization Nrs for WaterNon-rising resilent gate valve, gate valve as a whole package glue to produce the phenomenon of deformation effect to achieve a good sealing effect, to overcome the general valve seal bad, water leakage and rust, the more effectively to save installation space. Can be widely used as the regulation and closure devices for water, sewage, construction, petroleum, chemical, food, pharmaceutical, textile, electric power, shipbuilding, metallurgy, energy systems and other fluid pipeline.
Meterial of main parts

Part name	Meterial
Body	Gray iron, ductile iron, cast steel
Gate	Ductile iron+EPDM or NBR
Allen bolits	Carbonization process
Seals	NBR,EPDM
Bonnect	Gray iron,ductile iron,cast steel
Stem	Stainless steel
O-ring seals	NBR
Thrust bearings	Tin bronze
Bolt	Carbon steel,ally steel
Gland	Ductile iron,cast steel
Dust Cover	NBR
Hand wheel	Malleable iron

Features
1.Weight light
2.Flat base type valve seat
3.Whole encapsulate
4.Fine casts the valve body
5.Inserts the type copper nut
6.Anti-corrosive
7.Is not easy to disrupt
8.Three "O" link seal packing collar
9.Is helpful to live drinks
Main dimensions

DN(mm)	D			D1			D2		L			H	N-ød			b
	10	16	25	10	16	25	10	16	F4	5163	F5		10	16	25	10	16	25
40	150	150	150	110	110	110	84	84	140	165	240	184	4-19	4-19	4-19	18	18	18
50	165	165	165	125	125	125	99	99	150	178	250	235	4-19	4-19	4-19	19	19	19
65	185	185	185	145	145	145	118	118	170	190	270	265	4-19	4-19	8-19	19	19	19
80	200	200	200	160	160	160	132	132	180	203	280	290	8-19	8-19	8-19	18-19	18-19	18-19
100	220	220	235	180	180	190	156	156	190	229	300	320	8-19	8-19	8-22	18-19	18-19	18-19
125	250	250	270	210	210	220	184	184	200	254	325	380	8-19	8-19	8-26	18	18	24
150	285	285	300	240	240	250	210	210	210	267	350	460	8-23	8-23	8-26	19	19	24
200	340	340	360	295	295	310	266	266	230	292	400	520	8-23	12-23	12-26	20	20	24
250	405	405	425	350	355	370	319	319	250	330	450	630	12-23	12-28	12-30	22	22	27
300	460	460	485	400	410	430	370	370	270	356	500	720	12-23	12-28	16-30	24	22	30
350	520	520	555	460	470	490	429	429	290	381	550	800	16-23	16-28	16-33	25	25	33
400	580	580	620	515	525	550	480	480	310	406	600	850	16-28	16-31	16-36	28	28	-
450	640	640	-	565	585		548	548	330	432	650	1000	20-28	20-31	-	29	29	-
500	715	715	-	620	650		609	609	350	457	700	1200	20-28	20-34	-	31	31	-
600	840	840	-	725	770		720	720	390	508	800	1350	20-31	20-28	-	33	33	-
700	895	910	-	840	840		800	800	430	610	-	1390	24-30	24-36	-	32	32	-
800	1015	1025	-	950	950		900	900	470	660	-	1520	24-34	24-40	-	35	35	-
900	1115	1125	-	1050	1050		1000	1000	510	711	-	2090	28-34	28-40	-	36	36	-
1000	1230	1255	-	1160	1170		1112	1112	550	811	-	1980	28-37	28-43	-	40	40	-
