Semi-auto Gap tool room turret lathe with electromagnetic brake

Product Description

Features:
1. High-strength ONE PC'S cast iron
2, the rail is high-frequency quenching, inlaid with high-quality wear-resistant pieces.
3, automatic centralized lubrication
4, the spindle box gear precision grinding, low noise.
5, more types of threads
6, electrical safety performance is good, high reliability.
7, with electromagnetic brake, bed color for a variety of options.
Specification:

Technical Specification	CD6241
Swing Over Bed	410
Swing Over Cross Slide	255
Swing Over Gap	580
Length of gap	190
Width of Bed	250
Distance Between Centers	1000/1500
Cross Slide Travel	210
Top Slide Travel	140
Center height	205
Spindle Speeds	16 steps
Spindle Speed Range	45-1800 RPM
Leadscrew pitch	4 TPI
Through Hole Diameter	52
Spindle Nose	D1-6
Spindle inner hole taper	MT6#
Thread - Standard (Whit-worth)	45 kinds 2-72 TPI
Thread - Metric Pitch	39 kinds 0.2-14 mm
Module threads	18 kinds 0.3-3.5 MP
Diameter pitch threads	21 kinds 8-44 DP
Longitudinal Feed	17 kinds 0.05-1.7 mm/r
Cross Feed	17 kinds 0.025-0.85 mm/r
Quill Travel	120
Quill Diameter	50
Quill Bore Taper	MT4#
Main Motor	2.2/3.3 kw
Machine weight	1550 kg 1950 kg
Machine size	1940x850x1320 mm 2440x850x1320 mm
Standrd accessories	Standard Accessories :
	1.3 jaw chuck
	2.4 jaw chuck
	3. Thread chasing dial
	4.Stedy rest
	5.Follow steady
	6.Face plate
	5. Chuck cover
	6.Oil gun
	7.Working lamp
	8. Foot brake
	9.Operation manual
	10.Dead center

Hercules Machinery Equipment Ltd.
Random Attachments:
1·Lighting
2·cool down
3·3-jaw chuck + tray
4·Reducing sleeve
5·Oil gun
6·Wrench
7·Baffle plate
Optional accessories:
1· Center frame
2· 4-claw chuck + tray
3· Flower plate
4. Center frame
5· with knife holder
6. Live top
7. Spring screw guard
8. Digital display
9. Taper model
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided.
4. On-site training service provided.
5. Spare parts replacement and repair service provided.
6. All of the questions will be replied within 8 hours.
7. If you have customize requirement on specification, just let us know, we'll help you to work it out.
Pictures for reference only:

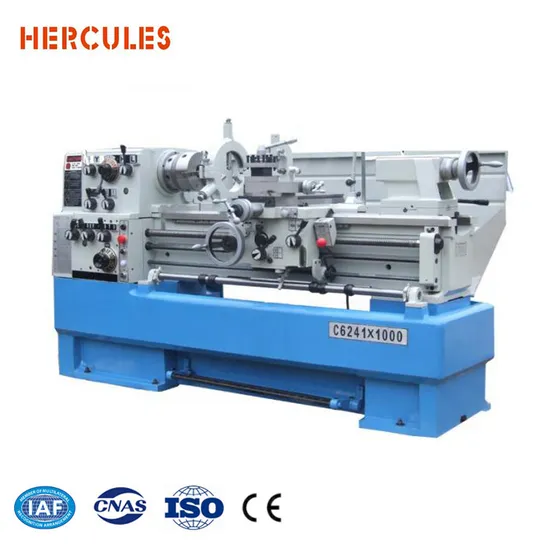

Machine Image
