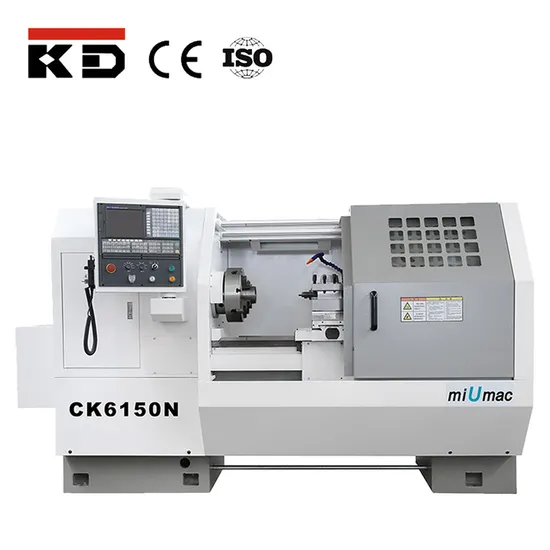

Kd 80mm Spindle Bore CNC Flat Bed Lathe Machine (CK6150N)
| US$15,000.00-30,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
(CK6150N)
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.03mm
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Max Swing Over Bed
500mm
Spindle Bore
80mm
Tool Post
4 Way (Stadard),6 Way and 8 Way( Optional)
Transport Package
Export Wooden Case(Heat Treated)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
1100 Sets/ Year
Product Description
KD 80mm Spindle Bore CNC Flat Bed Lathe Machine (CK6150N)FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
ITEMS | CK6140N | CK6150N |
Max. swing over bed | Ø440mm | Ø500mm |
Max. swing over carriage | Ø210mm | Ø295mm |
Width of bed | 405mm | |
Maximum turned length | 1000mm | 1000/1500mm |
Max. turning length | 850mm | 850/1350mm |
Spindle nose | A2-6 | D8 |
Spindle bore | Ø56mm | Ø80mm |
Cone hole diameter and taper of spindle hole | MT.No6 | MT.No7 |
Steps of spindle speed(Manual) | Variable | 2(variable within each step) |
Range of spindle speed | 450~2800 r/min | 100~500,400~2000r/min |
Rapid feed for Axis Z | 10m/min | |
Rapid feed for Axis X | 8 m/min | |
Max. travel of Axis Z | 880mm | 900/1400mm |
Max. travel of Axis X | 290mm | 310mm |
Min. input | 0.001 mm | |
Tool post stations | 4-ways | |
Tool cross section | 25×25 mm | 32×32 mm |
External diameter | Ø75mm | |
Taper of bore | MT.No.5 | |
Max. Traverse | 150mm | |
X/Z motor torque | 4.7/7Nm | 7/9.5Nm |
Power of main motor | 5.5 KW | 7.5 KW |
Power of cooling pump | 90W | |
Overall dimensions(L×W×H) | 2630×1400×1550mm | 2530×1400×1600mm |
Net weight | 2700 kg | 2850 kg |
