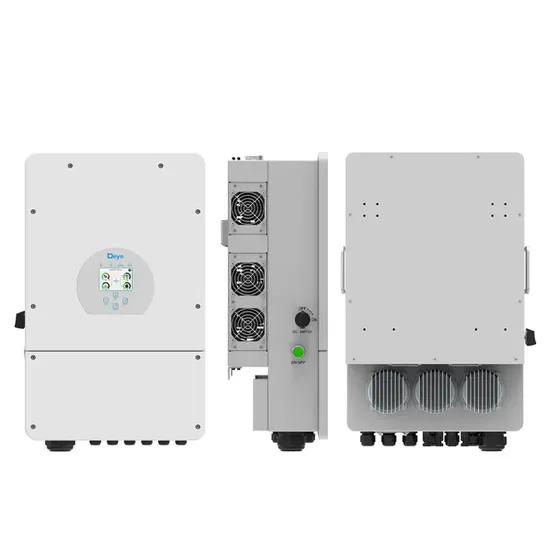

Deye 12kw Hybrid Solar Inverter with Efficient Battery Management

Product Description

Product Description

Model	SUN-8K-SG02LP1-EU-AM2	SUN-10K-SG02LP1-EU-AM3	SUN-12K-SG02LP1-EU-AM3
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	40-60
Max. Charging Current (A)	190	220	250
Max. Discharging Current (A)	190	220	250
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Number of Battery Input	1
PV String Input Data
Max. PV Access Power (W)	16000	20000	24000
Max. PV Input Power (W)	12800	16000	19200
Max. PV Input Voltage (V)	500
Start-up Voltage (V)	125
MPPT Voltage Range (V)	150-425
Rated PV Input Voltage (V)	370
Max. Operating PV Input Current (A)	26+26		26+26+26
Max. Input Short-Circuit Current (A)	44+44		44+44+44
No. of MPP Trackers/ No. of Strings MPP Tracker	2/2+2		3/2+2+2
AC Input/Output Data
Rated AC Input/Output Active Power (W)	8000	10000	12000
Max. AC Input/Output Apparent Power (VA)	8800	11000	13200
Rated AC Input/Output Current (A)	36.4/34.8	45.5/43.5	54.6/52.2
Max. AC Input/Output Current (A)	36.4/34.8	45.5/43.5	54.6/52.2
Max. Continuous AC Passthrough (grid to load) (A)	50		60
Peak Power (off-grid) (W)	2 times of rated power, 10s
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range (V)	220/230 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range(Hz)	50/45-55, 60/55-65
Grid Connection Form	L+N+PE
Total Current Harmonic Distortion THDi	<3% (of nominal power)
DC Injection Current	<0.5% In
Efficiency
Max. Efficiency	97.6%
Euro Efficiency	96.5%
MPPT Efficiency	>99%
Interface
Communication Interface	RS485/RS232/CAN
Monitor Mode	GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range (ºC)	-40 to +60ºC, >45ºC Derating
Ingress Protection(IP) Rating	IP 65
Cabinet Size (WxHxD mm)	330×580×232 (Excluding Connectors and Brackets)
Weight (kg)	25
Grid Regulation	IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105

Detailed Photos
Company Profile
Why Choose Us
Why Choose UsToyon Energy is a professional factory leader in the PV industry, we offer solar photovoltaic all in one system and one-stop services with competitive prices and fast delivery time and we insure our quality is second to none.
* Higher power generation
* Competitive price
* High quality standard
* Stable supply chain guarantee
* Customized serviceFAQ
1.What main products can you provide?
We can provide many series of solar products,mainly producing the solar panels, solar inverters,power wall,lithium ion
batteries,gel batteries and also all in one solar system solution according to your needs.
2. How is your technical support?
We can provide lifetime online support through WhatsApp/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime.
3. What about the lead time?
We can always deliver within 5-15 working days.The common products we always have the stock, it can be sent out within 15 days. While the big order needs to negotiate the finish production time and promise it to our customers.
4. Can you provide OEM service?
Yes, as a professional solar system manufacturer, we can provide customer-made service with OEM and on-site installation comprehensive support, and after-sales services.
5. How can we guarantee quality?
We can provide a pre-production sample before mass production and also final inspection before shipment. We can also provide 24-hour after-sales service. Regardless of the time difference, we will solve the problem for you as soon as possible.
6. What's the payment term?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU.
Accepted Payment Type: T/T, L/C, PayPal.
