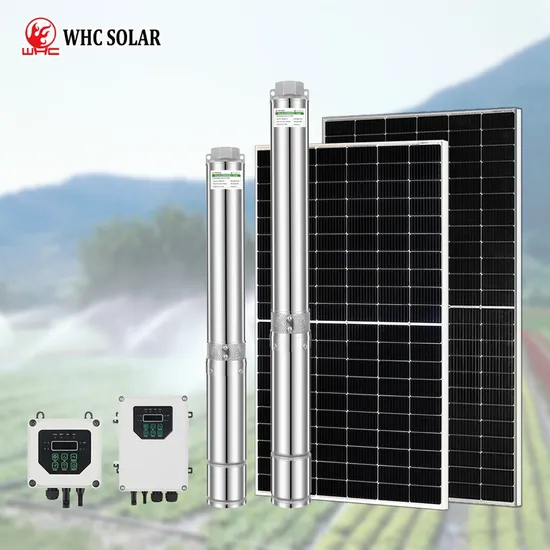

High Quality Solar Submersible Borehole Pumps 3HP Solar Water Pump for Agriculture System
Basic Info.
Model NO.
WHC-4SP3-128/23-2200W/200V
Max.Head
188m
Max.Capacity
67 L/Min
Driving Type
Motor
Material
Stainless Steel
Structure
Multistage Pump
Assembly
Liquid Pumps
Power
Solar Energy
Start Up
Start Pump
Type
Solar Submersible Pump
Application
Submersible Pump
Industry
Solar Water Pump
Media
Clean Water
Performance
Automatic Pump
Theory
Solar Submersible Pump
Horsepower
3HP
Voltage
200V
Motor
DC Brushless Motor
Max Flow
4 M3/H
Max Head
188m
Outlet
1.25 Inch
Cable
2m
Usage
Pumping/Farm/Agricultural Irrigation
Transport Package
Package in Carton or According to Your Requiremen
Specification
WHC-4SP3-128/23-2200W/200V
Trademark
WHC / WHC SOLAR
Origin
Guangdong, China (Mainland)
Production Capacity
10000pieces/Month
Packaging & Delivery
Package Size
170.00cm * 25.00cm * 15.00cm
Package Gross Weight
24.000kg
Product Description
Product Description Features:1. Intelligent MPPT Controller With LCD Display2. 304 Stainless Steel Material3. Generator Auto Turn on/off4. Brushless DC Motor, The efficiency is improved by 25%5. Soft start running makes system life longer
Product Parameters
| Item | Voltage | Optimum input voltage(DC) | Power | Max Flow | Max.Head | Outlet | Cable | Solar panel | |
| Open circuit voltage(voc) | Power | ||||||||
| WHC-3SP2.5-38/10-550W/60V | 60V | 60V-84V | 550W | 4.8m³/h | 60m | 1.25/1.5" | 2m | <100V | ≥660W |
| WHC-3SP2.5-59/15-750W/72V | 72V | 72V-124V | 750W | 4.8m³/h | 84m | .25/1.5" | 2m | <150V | ≥900W |
| WHC-4SP2-63/11-900W/96V | 96V | 96V-124V | 900W | 4m³/h | 100m | 1.25" | 2m | <150V | ≥1080W |
| WHC-4SP2-88/14-1200W/110V | 110V | 110V-164V | 1200W | 4m³/h | 137m | 1.25" | 2m | <200V | ≥1440W |
| WHC-4SP2-110/18-1500W/110V | 110V | 110V-164V | 1500W | 4m³/h | 176m | 1.25" | 2m | <200V | ≥1800W |
| WHC-4SP3-128/23-2200W/200V | 200V | 200V-330V | 2200W | 5.5m*/h | 188m | 1.25" | 2m | <450V | ≥2640W |
Detailed Photos
