US$27,200.00-88,000.00
|
1 Set
(MOQ)
|
Basic Info.
Material Processed
Plastic Flakes
Computerized
Computerized
Application
PP PE Plastic Flakes
Pelletizing Way
Pull Strap
Degassing
Two(One Vacuum, One Nature)
Screw and Barrel
38crmoala, Nitrogen, Bimetallic
Deliverying Time
45 Working Days
Speed Control
by Inverter
Screw Cooling
by Wind/Fan
Transport Package
Film Packing and Wood Case or Wood Base
Specification
Pellets size: 2.5*3 mm
Production Capacity
10sets/Year
Product Description
Pelletizing production line integrates crushing compactor and pelletizing ,with high level of automation and high feeding efficiency , it is more suitable for large size film to enter the equipment directly without crushing . Intelligent modular system and onekey for startup and shutdown are secure and stable . We can provide single stage , double stages and multi-stage structure according to different requirements in order to ensure the excellent quality of the particles.
Two stage machine with two screen changer, so that it can fliter much more impurity. Meanwhile the machine with one vacuum degassing and one natural degassing, then the final pellets will be more beautiful. The machine is with high performance and high efficiency,
Screw is designed with differennt type for different, and the heater also can use Cost Aluminium, cost copper, alloy, keramic or others. Side feeder with mixer, material feeder into the extruder, meanwhile the mixer will be running all the time, the material won't stick together and can be send into the extruder Machine detail parameter
Item NO. | Item name | Quantity | Power |
1 | Side force feeder | 1 set | 7.5kw+1.5KW |
2 | Φ150/28 single screw extruder | 1 set | 110kw |
3 | Hydraulic screen changer system | 1 set | 2.2kw |
4 | Φ150/10 single screw extruder | 1 set | 37kw |
5 | Hydraulic screen changer system | 1 set | 2.2kw |
6 | Water-ring pelletizing system | 1 set | 2.2kw |
7 | Chute | 1 set | --- |
8 | Centrifugal dryer | 1set | 5kw |
9 | Wind transmission and silo | 1 set | 4kW |
10 | Electrical control box | 1 set | _ |
Project summary
NO. | Item. | Spec. |
1 | Material | HDPE, LDPE, PP film |
2 | Capacity | output::300-350 kg/hr |
3 | Final products size | Φ3mm |
4 | Electricity power | 380V/3P/50HZ |
5 | Installed power | 250 KW for whole plant |
6 | Power consumption | 70% of installed power |
7 | Plant area | > 60 Square meter > 3 meter height Estimate line size: 10m(Length)* 2 m(Width)* 3 m(Height) we can make the line turn as I or L shape to fit the buyer's plant |
8 | Manpower | 1-2 Persons required |
12 | Payment terms | 30% by TT as deposit; Balance paid by TT before shippment. |
Delivery time | 45 Working days since receive the deposit |
Package | Packing by film. |
Warranty Period | 12months since the date of BL(except easy broken parts) |
Shipping | By sea |
Offer validity | 35Days |
The advantages of this machine 1. Highly efficent: the machine is automatic and with less power consumption.
2. Special screw design: We will design the screw up to customer different material and the material of screw and barrel can be 38CrMoAL or bimetallic.
3. High capacity: the capacity of the machine is about 300kg/h
4. Material come out more stably: material go through from the first stage to the second stage, with two screen changer, much more impurity will be filterd and the material come out from the die won't broken down.
5. Beautiful pellets: two degassing system, no air in the pellets.
6. The machine wih long life. The layout of the machine

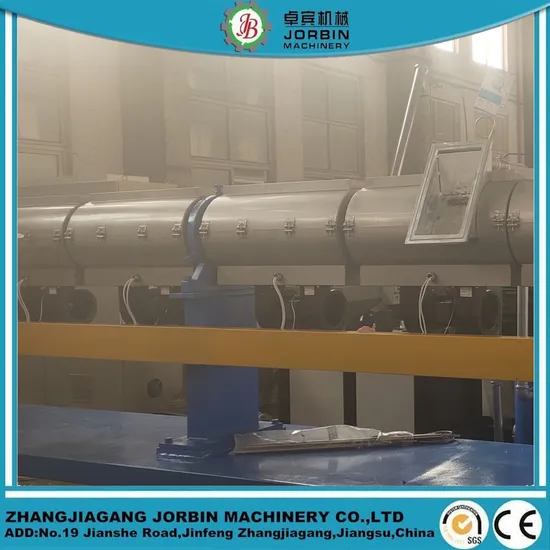

More machine photoes Rotary charger(Send the rotary material into feeder hopper) The power: 2.2kW Controlled by inverter Screw diameter: 114mm Material: Stainless steel The first stage to the second stage(After side force feeder, the material will be send to the first stage, with extrusion and first screen changer, the material will go to the second stage)
Water-ring hot cut die(For PP and PE the die is different)
Centrifugal dryer
The whole Production Line
Pameter of such kinds of machine
Model | Screw diameter(mm) | L/D | Capacity (kg/h) |
QL-100/100 | SJ-100 | 100 | 26~33 | 100~200 |
SJ-100 | 100 | 12 |
QL-120/120 | SJ-120 | 120 | 26~33 | 150~300 |
SJ-120 | 120 | 10 |
QL-150/150 | SJ-150 | 150 | 26~33 | 300~450 |
SJ-150 | 150 | 10 |
QL-180/180 | SJ-180 | 180 | 26~33 | 800~1000 |
SJ-180 | 180 | 10
|
1. We supply below necessary documents with the machine:
Machine layout Electricity diagram Machine certificate General manual book/maintenance book 2. We provides one-year quality guarantee. During this period, if the machine's malfunction is approved to be our responsibility, we will send the broken spare parts to you with DHL courier or other way within 7 workdays after receiving the complainant. And send the technicians to the buyer's factory for maintaining. All charges are in our account.
3. After one year guarantee, If you need we can provides payable spare parts and technician's VISITING maintenance, and any broken spares we can send you soon as possible.
4. We trust that our quotation meets with your requirements and we will gladly furnish you with further information.
5. 24Hours service : Cell+86-13915707468
