Platform Gratings FRP Pultruded FRP Grates Walkway

Product Description

Product Description

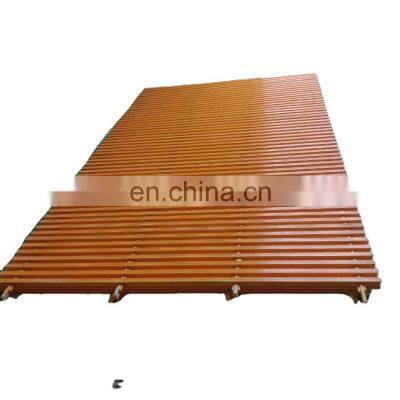

Product DescriptionPlatform Gratings FRP Pultruded FRP Grates Walkway Pultruded FRP Grates offer higher strength characteristics and are ideally suited for heavier loads across longer spans than molded grating. The composite matrix of pultruded grating utilizes a higher fiberglass content to resin ratio resulting in a stiffer grate but with less corrosion resistance. Pultruded grating is a unidirectional structure and being an assembled product, allows for larger panel sizes for better utilization.Load Bars: Pultruded grates are constructed of a series of independent load bars with either an "I" or "T" profile. "I" bars are typically used for industrial applications having a higher load capability"T" bars are typically used for pedestrian applications having a wider walking surface.Open area between the load bars can be as high as 60% or as small as 12% depending on your application and loading.Resin Systems: available in two resin formulations both containing a fire retardant that offers an ASTM-E84 flame spread rating of 25 or less. ISOFR Isophthalic Polyester Fire Retardant Yellow / Dark Gray used for moderately corrosive environments VEFR Vinyl Ester Fire Retardant Yellow / Dark Gray used for highly corrosive environmentsFRP Grating advantages1. Corrosion resistant2. High strength & light weight3. Long service life4. Fire retardant5. Impact resistant6. Nonconductive and thermal insulation7. Non-magnetic electromagnetic transparency8. Dimensional stability, Bright color9. Low-maintenancePultruded frp grating pictures showSpecificationType Height(mm)Top edge width (mm)Space between (mm)Clearance width(mm)Open area(%)Estimated weight kg/m2I-4010251525104017.8I-5010251530155015.1I-6010A251538236012.2I-6010B25819.811.86013.7I-4015381525104022I-5015381530155019.1I-6015381538236016.2I-4012301525104019.1I-5012301530155016.1I-6012301538236013.1I-40125321525104028.5I-50125321530155024.2I-60125321538236020.1I-4020501525104028.5I-5020501530155024.2I-6020501538236020.1Details ImagesFiberglass grating manufacturer FRP/GRP composite pultruded and molded gratings show After-sales service1.Provide install video if necessary and other install documents2.Quality guarantee is 1 year. 3.If it was proved due to the quality problem,we will bear all cost for replace during quality guarantee time.Packing&ShippingRelated Products1, high quanlity and best price Our company is Professional manufacturer , cheap price and guaranteed quality. we can do the test as your required , such as SGS, ISO and so on. 2, Accept customized, Our company accept customized, if our catalog don't the size you need, is doesn't matter, we can according your required to produce it. 3, Best serviceAnswering emails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long term business. I think you will satisfy with our service. Give us your PO, let us cooperation for a long time.FAQ
