Hot Sale Factory Price Plasma Sputtering Coater with 1/2/3 Target

Product Description

Hot sale factory price plasma sputtering coater with 1/2/3 target
Product Description

1. This type of small plasma sputtering coating machine adopts single-stage sputtering method, which is widely used for SEM
sample preparation or metal coating experiment.
2. Using low-temperature plasma sputtering process, there is no high temperature during the coating process, thermal damage is
barely happen.
3. This small plasma sputtering coater uses PLC +touch screen control system, easy to operate. a rotatable sample stage is
equipped.
4. It comes with small size, suitable for lab research process.



Product Parameters

Product model	TN-PLZ180-III-DC-Q
Sample stage	Size	100mm
	Distance from sample stage to target surface	20~35mm height adjustable
	Rotating speed	1~20rpm adjustable
	Heating temperature	≤500ºC
	Temperature control accuracy	±1ºC PID temperature control
Plasma sputtering source	Quantity	2 inchesx1/2/3
	Cooling method	Water cooling/Natural cooling
Vacuum chamber	Chamber size	φ180mm x 200mm
	Observation window	Omnidirectional visibility
	Chamber material	High purity quartz
	Open method	Top cover removable
	Upper and lower cover material	304 stainless steel
	Pumping port	KF16
	Intake port	1/4 inch ferrule connector
Power configuration	Quantity	DC power supplyx1
	Output power	Max. 150W
	Sputtering power	1200V
	Max. sputtering current	50mA
Vacuum system	Vacuum pump type	Dual-stage rotary vane vacuum pump
	Pumping port	KF16
	Exhaust interface	KF16
	Pumping rate	1.1L/s(4m3/h)
	Ultimate vacuum	≥0.1Pa
	Vacuum measurement	Resistance vacuum gauge
Others	Power supply	AC 220V 50Hz
	Total power	1.5kW/2kW
	Dimension	570mm * 450mm * 500mm
	Weight	30kg

Detailed Photos
Notes:
1. We have plasma sputter coater with 1/2/3 target,
2. Water cooled target, rotation substrate is optional
3. Heating substrate is available
Single target plasma sputter coater

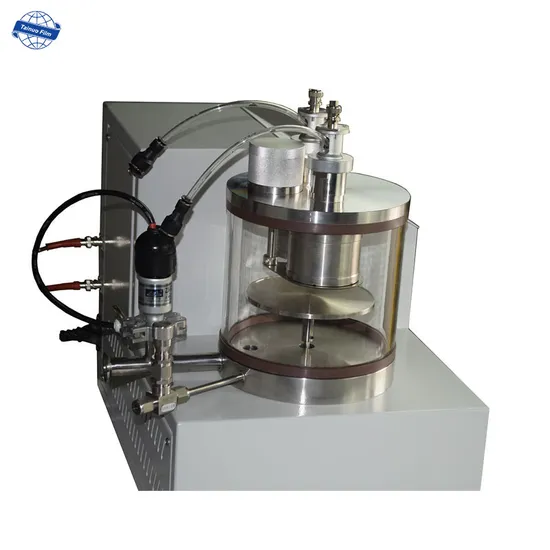

Dual target plasma sputter coater
Triple target plasma sputter coater
