Large CNC Vertical CNC Milling Machine Gmc1530 3 4 5 Axis Milling Machining Center

Product Description

Overview

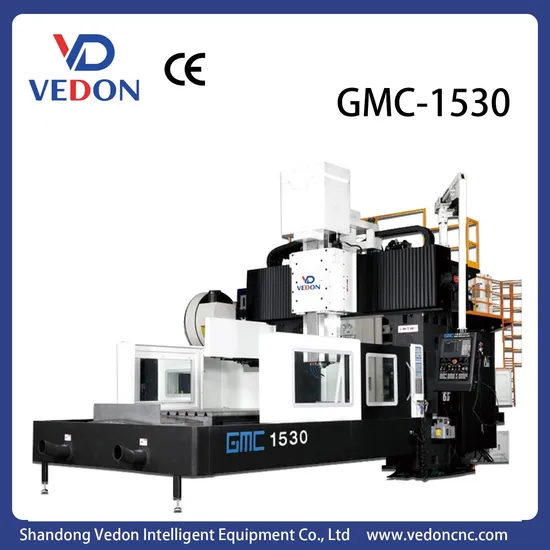

GM1530 Gantry type milling machine high Speed 3/4/5-Axis Machine Center Gearbox Gantry Machining Center
Specifications

Specifications
Model	GMC1530
Worktable longitudinal travel	2200mm
Slide carriage transverse travel	1700mm
Milling head vertical travel	800mm
Worktable size	2000x1100mm
Max. load of worktable	3500kg
Number/Width/Distance of T-slot	7/22/160mm
Gantry width	1600mm
Distance from spindle end to worktable surface	150-950mm
Spindle taper	BT50
Spindle speed	10-3200rpm
Spindle motor power	15/18.5kw
Feed speed X/Y/Zaxis	1-10000/1-10000/1-8000mm/min
Rapid feed X/Y/Zaxis	15000/20000/12000 mm/min
Positioning accuracy X/Y/Zaxis	+0.005/300 JIS
Repeat positioning accuracy X/Y/Zaxis	+0.003/300 JIS
Overall dimension	7450/4200/4580mm
Machine weight	18000kg

Machine Details
Control pannel
Simple operation, durable, no need to worry about processing accuracy.
Tool Magazine
Accurate tool change, fasttime high efficiency, ensure the stability of the tool library.
Linear guideway
Linear guide rail, large bearing capacity, small friction loss, long service life.
Spindle
Using the original spindle, high precision, good rigidity. Prolong the service time of the spindle.
Ball screw
High movement efficiency, low fever, high speed feed.
Packaging & Shipping
Company Profile
Shandong Vedon Intelligent Equipment Co., Ltd., We Specialize In The Design And Manufacturing Of High-Precision Cnc Machines For Metalwork Processing. Including 5 Axis Machining Center, Gantry Type Machining Center, Horitonal Type Machining Center, Vertical Machining Center, Cnc Lathe Etc.. With A Strong Focus On Innovation, Quality, And Reliability, Our Advanced Cnc Equipment Enables Precision And Efficiency In Every Application. Whether For Small-Scale Operations Or Large Industrial Projects, We Deliver State-Of-The-Art Solutions Tailored To Meet The Diverse Needs Of The Metalworking Industry. Powered By Cutting-Edge Technology And A Commitment To Excellence, We Are Dedicated To Enhancing Productivity And Driving Success For Our Global Clients.
Certifications
FAQ
Q1. Could I put my LOGO on it or paint my own color?
A: Yes, As long as the order quantity reach to the MOQ.
Q2. What's your trade terms?
A: FOB, CIF, DAP or other terms are acceptable.
Q3. Could I order trail small order?
A: Yes,we have no MOQ for standard version products. The price is different from different order quantity.
Q4. What points need to be confirmed before placing the order?
A: Voltage, frequency, plug type trade term and have shipping agent or not.
Q5. What is your terms of payment ?
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, 70% before shippment. If you have another question, pls feel free to contact us as below.
