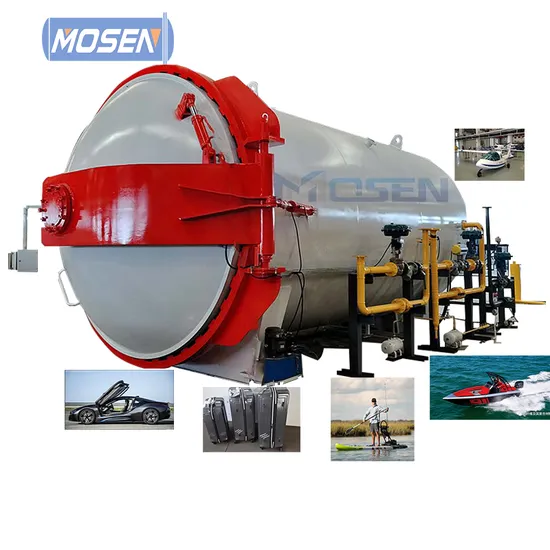

High Quality High Pressure Carbon Fiber Composite Autoclave Price

Product Description

Product Description
Our composite autoclaves incorporate pressurization and crosslinking to properly cure thermoset materials. The cure process includes a two-step process:
1.Pressure is applied in a vacuum as the temperature is raised to a moderate level and maintained for a short period of time. 2.Following this, the temperature is raised to the final cure temperature to complete the curing reaction. The manufacture of composite autoclaves requires advanced components, attention to detail, and strict adherence to quality control standards. Our dedicated team of design, production, and quality control personnel dedicate themselves to the highest level of performance in producing composite autoclaves that perform according to the specifications of our clients.

Effective Curing Diameter	φ3500-4200mm
Shell Diameter	3900-4700mm
Effective Curing Length	According To The Product,Tooling And Yield Selection
Shell Length	3900-4700mm
Maximum Operating Pressure	0.6-4.0MPa
Maximum Operating Temperature	160-400ºC
Number of Vacuum Channels	According To Demand(Vacuum Pump 2 Used 1 Standby)
Number of Thermocouple Routes	Specify As Required
Control System	Host Computer +PLC Logic Control+Intelligent Instrument+Substance Recorder+Floor Console, Etc.
Temperature Control Accuracy	≤±1ºC
Temperature Uniformity	≤±2ºC
Rising and Cooling Rate	0-6ºC/min Adjustable
Pressure Lifting Rate	0-0.1MPa/min Adjustable
Cooling Method	Circulating Water Cooling
Heating Method	Electric Heat Pipe Or Thermal Oil Heating

Main Products
Application
Detailed Photos
Company Profile
Shangdong Mosen Machinery Tech Co.,LTD.is a pressure vessel manufacturer integrating scientific research, design. production and sales. As a manufacturer of composite pressure vessels, the company has ISO/ASME/CE/DOSH quality system certification and sa roduction standardization system certification. The existing senior technical engineers are responsible for the design. process,materia elding, flaw detection,inspection and other functions in the quality assurance system, and can produce a variety of specifications models of pressure vessels. For the major enterprises to provide professional equipment and supporting services. The company focuses on the future,continuous innovation and development, has a sound management system and quality assurance system,for customers to problems, enjoy a good reputation at home and abroad.
Our company's main production equipment are:Large miltary composite autoclave,carbon fiber autoclave,composite autoclave,class fiber autoclave,auto pars composite autoclave,civil composite autoclave,small lab autoclave ,et ., equipment classification is complete, models are diverse, to meet the production needs of different users for different products, but also to provide customers with sample testing,personnel training and other all-round services.With excellent control system and perfect service system. our equipment has been exported to all over the world, and has been highly praised and recognized by customers, and is also widely used in aerospace,Chinese weapons, rail transit, ships and help China's manufacturing industry.
Our Advantages
OEM service, Strong production capacity and competitive price.
Stable and fast transportation and delivery
Door to door Service Excellent After-Sale Service.
Perfect quality program,100% test before delivery
We are a factory and direct sell, with price and technology advantages
Packaging & Shipping
FAQ
Q1:Are you a factory or a trading company ?
A1:We are the factory, located in Shandong. Expecting your visit at anytime.
Q2:How long is the delivery time of bulk orders ?
A2:Bulk order lead time: About 35 working days.
Q3: How to pay?
A3:We try to make all payment methods as much as feasible. TT and L/C are acceptable and TT will be more appreciated.
Q4: What is your advantage ?
A4:We also have professional technical team in designing and producing which can meet different requirements from customers, we offer 24 hours pre-sales and after-sales support, to ensure in-time communication between clients and us.
Q5: Is the price on your website is the closing price ?
A5:No, it is just for your reference, an exact quotation based on your requirement Please contact us for details.
