Semi-Automatic 7L Facial Tissue Folding Machine Facial Tissue Production Malchine
| US$30,000.00 | 1 sets (MOQ) |
Basic Info.
Model NO.
ST-200L
Tube Machine Type
Tissue
Gumming Type
Tissue Packing Machinery
Reelpipe Speed
Tissue Packing Machinery
Wall Thickness of Paper Tube
Tissue Packing Machinery
Condition
New
After-sales Service
12 Months
Processing Type
Paper Folding Machine
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Dimension(L*W*H)
Depend on Machine Model
Showroom Location
Egypt, Saudi Arabia
Weight
3000 Kg
Warranty of Core Components
1 Year
Applicable Industries
Hotels, Restaurant
Core Components
PLC, Gear
Product Type
Toilet Tissue
Capacity
80-100m/Min
Product Name
Jumbo Tissue Paper Making Machine
Voltage
380V 50Hz
Application
Paper Industry
Power
15kw
Transport Package
Standard Export Wooden Case Packing
Trademark
STPAPER
Origin
Zhejiang, China
Production Capacity
20 Set/Sets Per Month, 80-100m/Min
Product Description

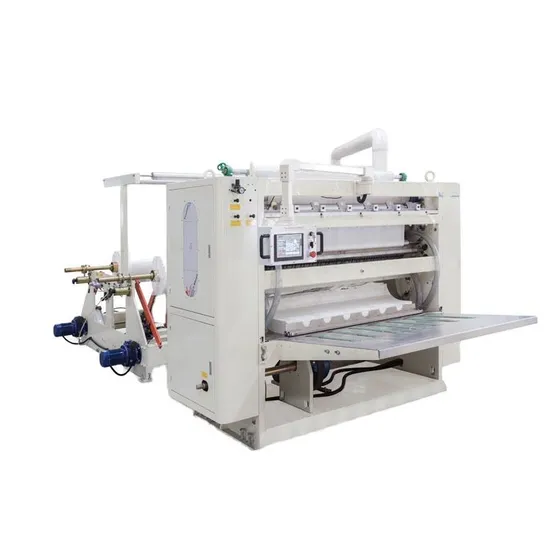

7L High Speed Folding Facial Tissue MachineProduct Description
The principle of a paper folding machine is mainly to feed the paper into the machine through a conveyor belt. The folding device folds the paper based on the length and width data detected by the sensor. The positioning device determines the folding position, and the cutting device cuts off the excess part to obtain a neat folded paper.
Embossing Unit:
1. Embossing part: 2 pairs steel to steel or steel to rubber
2. Edge-embossing part: 14 groups pneumatic steel against steel (bearing steel) at the front and back, independent adjustment.
Unwind Unit:
| Width of parent paper | 1450mm |
| Max diameter of parent paper | 1200mm |
| Core inside diameter | 76.2mm(3") |
| 2 parent paper roll | pneumatic loading unit |
| Web tension controlled | manually |
| Parent roll axes regulation | manually |
Transmission:
1.By gear and simultaneous belt
Control Unit:
1.Speed adjusted:by inverter(5.5kw)
2.Counting system:counter adjusted
3.Jogging button and emergency button installed on machine
Vacuum System:
1.1 set roots vacuum pump of 18.5KW(made in Taiwan)
Compressed Air:
1.Air pressure:> 4kg/cm2 (provided by buyer)
