Mobile Hydraulic Elevator Scissor Lift Table Aerial Work Platform 12m Mobile Type Lift Platform Price
Basic Info.
Model NO.
YGPT1012
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Middle-Level
Moves
Self-propelled
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
GS, CE, ISO 9001
Safe Working Load
500kg
Extended Platform Safe Working Load
115kg
Maximum Number of Workers
2
Maximum Working Height (a)
12m
Maximum Platform Height (B)
10m
Overall Length (C)
1860m
Machine Width (D)
780m
Working Platform Size (F)
1670X780mm
Platform Extension Dimension (G)
900mm
Minimum Ground Clearance (Folded State)
100mm
Minimum Ground Clearance (Lifting State)
19mm
Wheelbase
1695mm
Lifting Motor
24V/3.3kw
Machine Running Speed (Closed)
4km/H
Maximum Gradeability
25%
Transport Package
Wooden Box
Specification
3300*1500*2100mm
Trademark
YUGONG
Origin
China
HS Code
8428909090
Production Capacity
5000sets/Minth
Product Description
Product Description
MobileScissorTve lifting Platform
Focusingoncustomized productionofhigh=altitude work platforms
Various models, capable of raising 3-16 meters

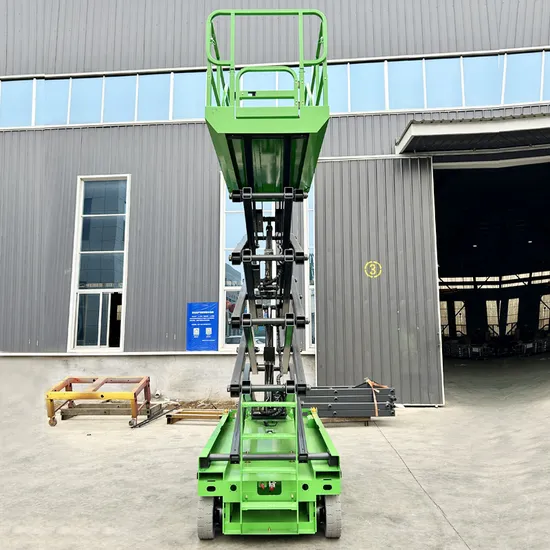

Detailed Photos
Product Parameters
| Product | Model |
| Self Propelled Scissor Lift | YGQY-6,YGQY-8, YGQY-10,YGQY-12 |
| Full Automatic scissor lift | YGPT0810, YGPT1012, YGPT1214, YGPT1416, |
| Crawler scissor lift | YGPT0810LD, YGPT1012LD, YGPT1214LD, YGPT1416LD |
