Hot Sale 25 Ton HBQZ Brand New Loader Crane Articulated Lift

Product Description

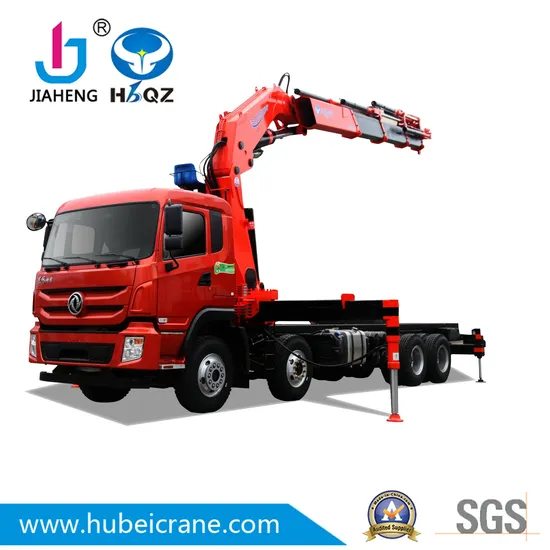

Hot Sale 25 Ton HBQZ Knuckle boom Cargo Truck Crane SQ500ZB5
Part 1-----PRODUCT DETAILS
Pictures show:
Technical information:

Model #	SQ500ZB5 /knuckle crane 25ton at 2m
Max Liftingmoment	500Kn.m
Max Lifting Capacity	25000/2.0
	11500/4.4
	5600/7.85
	3000/13.3
Max Lifting Height	16.8m
Max Working Radius	13.3m
Boom Section	5 stages
Rotation Angle	360°All Rotaion
Rated Working Pressure	28mpa
Oiltank Capacity	300L
Related Oil Flow	80 L/min
Outrigger Span	2330-7100mm
Outrigger	4,adjustable, Hydraulic operating.
Crane Weight	6600kg
Installation Space	1530mm
Swingtype	Planetary gear reduction
Safety Device	Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device.
Options	Aux.winch,Aux.Boom,Remote control
Material	HG785D

Truck for reference
Truck brand	Dongfeng (other truck brand can be customized)
Cabin	Driving type: 6x4, Left hand drive (Right hand drive type can be customized)
	Color is optional
Vehicle Main Dimensions	Overall size (L x W x H)	11950x2490x3850mm
	Wheel base	5850+1350 mm
	Cargo Body	8400*2300*550mm
Weight in KGS	GVW	25000 kg
	Tare weight	16250kg
	Front axle loading capacity	2 x 2500 kg
	Rear axles loading capacity	2 x27500 kg
Engine	Type	Diesel, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power	240HP (177kw)
	Max Torque	1000N.m
	Emission standard	Euro V
Max Speed	102 km/h
Gearbox	manual gearbox with 9 forwards & 1 reverses, with PTO
Tire	11.00R20 11 pieces including one spare tire

Our advantages:
1. Use HG785D international standard high-strength steel to reduce the weight of crane.
2.The boom of the knuckle crane is used hexagonal structure,reducing the lateral.
3.Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts to ensure the micro-mobility,security and stability.
4.Parker brand oil seal and gasket for hydraulic pump.
5.Brand scanreco remote control operate from Sweden.
Part 2-----OUR COMPANY
HUBEI BEST CRANE CO.,Ltd is located in Shiyan, Hubei Province of China.We are a professional truck mounted crane manufacture, mainly engaged in researching, developing and manufacturing truck mounted cranes from 1 ton to 200 tons.The Company has passed the ISO 9001-2008, and achieved the license of Special Equipment Manufacture Unit.
HUBEI CRANE is a wholly-owned subsidiary of HUBEI JIAHENG TECHNOLOGY CO.,LTD,which is formerly known as China famous hydraulic cylinder manufacture. The Head office JIAHENG was founed in 2001,the main products include a variety of special hydraulic cylinder.
After 19 years development,JIAHENG now covers an area of 200,000 Square meters, ownes a registered capital of 1000 million RMB,and 250 million RMB worth of fixed assets .JIAHENG has established long time cooperation with over 80 big companies like Zoomlion, Fukuda Fortaleza, CIMC Vehicle Group, and so on.
Our company have more than 800 units equipment for mass production.
We can product around 220 thousand units per year of hydraulic cylinder and 500 units per year of truck crane.
Our company have more than 150 technical staff, Have more than 10 invention patents and 60 utility patents.
So we can produce customized products or develop new products.
Part 3-----EXHIBITION
Our company attend the CANTON FAIR in China twice one year since 2014.
And also attend the BAUWA FAIR evevry two year.
We also coopearate with our customers for many fair both in China or overseas.
Part 4-----FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: How to pack and transport?
A: Nude with safty protection, only crane can be packed into containers for shipment.
And the truck mounted crane can be deliveried with ro-ro ship.
3: How long is the delivery time??
A: 35 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: one unit. For customized products, the MOQ can be Negotiated.
