High Quality Blow Molding Machine for Pet Pharmacy Bottle
| US$10,000.00-75,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ISB800-3
Making Method of Parison
Injection Blowing
Automation
Automatic
Computerized
Non-Computerized
Certification
CE, ISO9001:2008
Application
Plastic Bottle
After Service
Engineers Available to Service Machinery Oversea
Power
30kw
Warranty
1 Years Warranty
Bottle Material
Pet,PP,PC,PS,PMMA,Tritan
Transport Package
Wooden Package
Specification
3.8x1.45x3.0m
Trademark
JASU
Origin
China Mainland
HS Code
8477401000
Production Capacity
100PCS/Month
Product Description

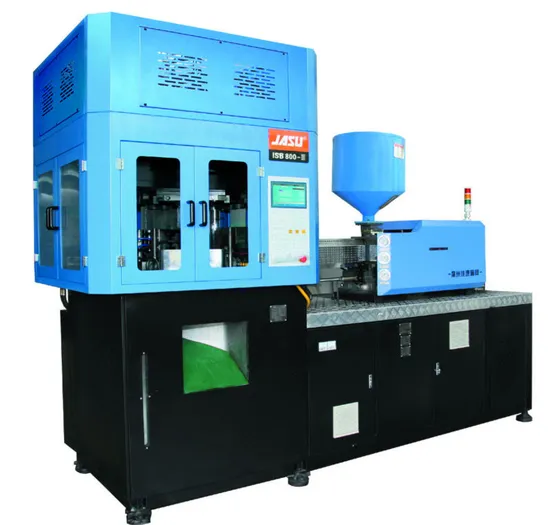

one step injection stretch blow molding machineINJECTION STRETCH BLOW MOLDING MACHINE ISB800-3
| Parameter | Configuration List | |||
| Raw material: | PP, PC, PET, Tritan | Servo Motor and Oil Pump | Phase (Italy) and Eckerle (Germany) | |
| Screw diameter: | 40mm | Hydraulic valve | YUKEN(Japan) | |
| Screw L/D Ratio: | 20.5:1 | Sealing Parts | Seal Tech, China | |
| Screw Speed: | 0-190r/min | F.R.L | China | |
| Theoretical Injection capacity: | 238cm³ | Air Valve | Air TAC | |
| Injection Pressure | 174Mpa | Controller (PC) | JASU, Taiwan | |
| Max.hydraulic Pressure | 140kg/cm | Servo Motor for Turntable | TECO, Taiwan | |
| The actual injection quantity | 225g(ps) | Gear Reducer | SESAME, Taiwan | |
| Screw Stroke | 190Mm | Low-voltage components | Joint Venture | |
| Blow Clamping Force | 80Kn | | ||
| Clamp Tonnage | 400Kn | | ||
| Wheel Diameter | 800mm | |||
| Max. Height of bottle | 150mm | |||
| Open vertical mode trip | 430mm | |||
| Max. Pump Pressure | 16Mpa | |||
| Motor Oil | 18.5Kw | |||
| Optional Pump Servo Motor | 22kw | |||
| Electric Power | 8.9Kw | |||
| Tank Volume | 400L | |||
| Dimension OF Machine | L3.8xW1.45xH3.0m | |||
| Machine Weight: | 5T | |||
injection blowing mould
Gauangzhou Jasu Precision Machinery Co.Ltd is a sabusidiary of JASU International Machinery Group locates in Guangzhou China, which is top 3 supplier of CNC machine tools in South China. JASU owns R&D center and factories in Guangzhou and Suzhou. JASU has been dedicated to manufacturing CNC lathe, machining center, Gantry CNC milling machine and machine tool accessories for 20 years.
Absorbing the design and manufacture of Taiwan and Germany, JASU create a series of highly distinctive, automatic and cost-effective CNC Machine Tools, machine accessory and one step Injection (Stretch) Blow Molding Machine. JASU has got high reputation and trust among customers by means of modern management method, perfect quality, novel design and reasonable price.
Our company faith is "better and faster, it is JASU". We are engaged in providing machines with high quality and best service to create benefit for enterprise and create value for customer.
JASU group
JASU Certification
