Wireless multi-channel multi-function intelligent itinerant detector for thermocouple, platinum resistance, humidity sensor ETC

Wireless multi-channel multi-function intelligent itinerant detector for thermocouple, platinum resistance, humidity sensor ETC

Product Details

Product Details

Product Description

Product Description
Products Description

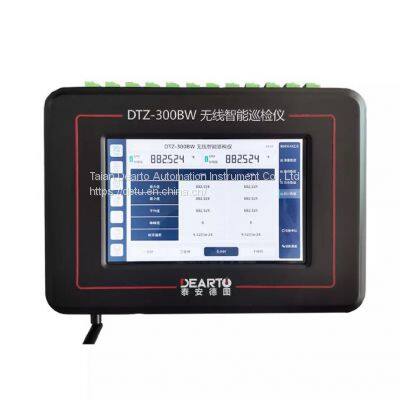

DTZ-300BW wireless intelligent itinerant detector is a multi-function inspection unit with 24 units 24-bit high-precision sampling channels, each channel can be independently configured, supporting four input modes, thermocouple,platinum resistance, humidity sensor and analog quantity; when configured as humidity sensor mode, the instrument can simultaneously provide up to 24 units 5V power output for the sensor power.
The product can be connected to the PC terminal or mobile terminal by wired or wireless way, and is suitable for the temperature field, humidity field, uniformity and volatility test of various temperature (humidity) environment experimental equipment,industrial furnace and verification furnace.
Product Features
▶ 24 units 24-bit high-precision sampling channels
▶ 24 units channel can be independently configured as thermocouple, platinum resistance, humidity sensor and analog input mode
▶ Each channel provides an independent built-in cold-end temperature sensor, and the temperature measurement accuracy is better than 0.1℃
▶ Each channel independent sampling, modular design, effectively improve the reliability and adaptability of the instrument
▶ Support the editing and configuration of sensor-related parameters such as sensor type and range
▶ Support the editing and configuration of sampling-related parameters such as sampling time and sampling interval
▶ 24 channels can be independently calibrated and corrected for single point, piecewise linear or least squares
▶ Support voltage, resistance, temperature, humidity and other data formats display, storage and output
▶ Provide encryption algorithm support, can encrypt data files, effectively improve security
▶ Support for RS232, wired network and wireless network multiple communication modes, can be connected to the PC terminal or mobile terminal
▶ Provide 24-road 5V power supply externally, convenient for the use of humidity sensor connection
▶ Provide 8G large capacity internal storage space for data storage, data can be exported through the USB port
▶ Seven-inch industrial-grade color touch-screen display
Product Paramenters
Channel technical indicators
Range
Measuring range
Resolution ratio
Accuracy
Number of channels
Remarks
100mV
-20mV~100mV
0.1uV
0.01%RD+4uV
24
Configuration
400Ω
0Ω~400Ω
1mΩ
0.01%RD+0.005%FS
24
The 1mA excitation current source
1V
0V~1V
0.1mV
0.05%RD
24
5V power supply output

General technical indicators
Power requirement
12VDC 2A
Communication interface
RS232,LAN, Wireless
Shell material
Alufer +ABS
Module size
250mm×170mm×70mm
Module weight
1.6kg
Environment
Use
(5~35)℃,(0~85)%rh
Store
(0~70)℃,(0~100)%rh
