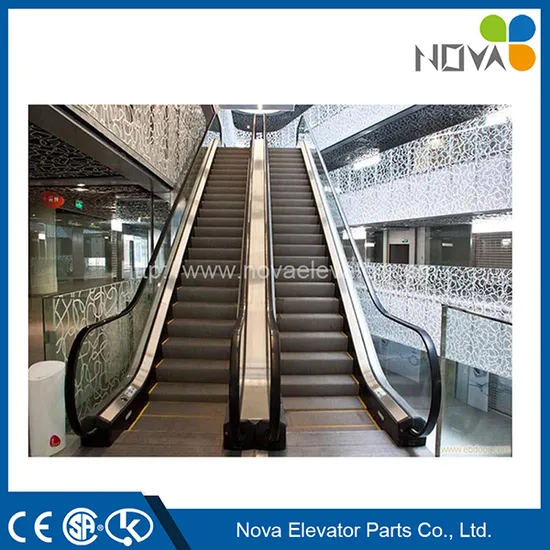

Good Quality Shopping Mall Indoor Escalator
| US$10,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
NOVA
Type
Heavy
Load Capacity
9000 Persons/H
Use of Occasions
Public Traffic
Speed
0.5M/S
Slope Angle
30 Degree or 35 Degree
Width of Stair
600mm, 800mm or 1000mm
Cascade Level
Two or Three
Driving Type
AC Elevator
Railing Form
EX-P
Step Road Linetype
Linear
Step
Stainless Steel or Aluminum Alloy
Truss
Profiles
Balustrade
Tempered Safety Glass
Handrails
Syntheric Rubber(Black)
Comb Plate
ABS or Aluminum Alloy
Skirting Plate
430 Stainless Steel
Landing Plate
430 Stainless Steel
Vvvf Control
Optional
External Cladding
Optional
Running Direction
up or Down Running
Model No.
Escalator
Driving
AC Elevator
Vertical Rise
3m-10m
Package
Wooden Case
Capacity
200pieces/Year
Transport Package
Standard Export Package
Specification
600mm to 1000mm step
Trademark
NOVA
Origin
China
HS Code
84281010
Production Capacity
1500 Units Per Year
Product Description
NOVA escalator to the excellent performance, practical and flexible design to meet different customer needs. Priority use of microcomputer virable frequency(VVVF) and ergonmics research and advanced manufacturing technology. NOVA escalator more perfect, safe, comfortable, energy-saving, easy maintenance.Its excellent performance design and based on a solid, complete parts, more flexible in line with the needs of the two sides in the commercial and public tranportation.
| Escalator standard configuration(Indoor) | |
| Parts name | Specification |
| Handrails | Syntheric rubber(black) |
| Other colors | |
| Handrails bracket | Hairline stainless steel |
| Balustrade | Tempered safety glass |
| Stainless steel | |
| Inner and outer cover plate | Hairline stainless steel |
| Skirting plate | Hairline stainless steel |
| Antifriction coated steel | |
| Step | Stainless steel(black) |
| Aluminum alloy(silver gray) | |
| Comb plate | ABS |
| Aluminum alloy | |
| Landing plate | Etching stainless steel |
| Punched stainless steel | |
| Truss | Profiles |
| Skirting brush | Nylon wire |
| Traction machine | 3 phase squirrel cage inductor motor and turbine-type gearbox |
| Type | Step wide | Outside cladding | Construction layout opening width | Handrail spacer | Construction layout opening width | Construction layout opening width |
| A | B | C | D | E | F | |
| 600 | 600 | 1200 | 1260 | 838 | 1838 | 1260 |
| 800 | 800 | 1400 | 1460 | 1038 | 2038 | 1460 |
| 1000 | 1000 | 1600 | 1660 | 1238 | 2238 | 1660 |
| 600 | |||||||
| Type | 3000 | 3500 | 4000 | 4500 | 5000 | 5500 | 6000 |
| Vertical risw(mm) | 57 | 60 | 64 | 68 | 71 | 75 | 79 |
| Net weight(KN) | 46 | 49 | 52 | 56 | 59 | 62 | 65 |
| Reactions R1(KN) | 41 | 44 | 47 | 50 | 53 | 56 | 59 |
| Reactions R2(KN) | 5.5 | 8 | |||||
| Motor pauer(KW) | 2750 | 2780 | 2810 | 2830 | 2840 | 2860 | 2870 |
| Transport dimensions(H) | 10900 | 11890 | 12889 | 13870 | 14860 | 15860 | 16850 |
| Transport dimensions(L) | 800 | ||||||
| Type | 3000 | 3500 | 4000 | 4500 | 5000 | 5500 | 6000 |
| Vertical risw(mm) | 59 | 63 | 67 | 71 | 74 | 82 | 86 |
| Net weight(KN) | 52 | 56 | 60 | 64 | 64 | 74 | 78 |
| Reactions R1(KN) | 47 | 50 | 54 | 57 | 57 | 66 | 69 |
| Reactions R2(KN) | 5.5 | 8 | 11 | ||||
| Motor pauer(KW) | 2750 | 2780 | 2810 | 2830 | 2840 | 2860 | 2870 |
| Transport dimensions(H) | 10900 | 11890 | 12880 | 13870 | 14860 | 15860 | 16850 |
| Transport dimensions(L) | 1000 | ||||||
| Type | 3000 | 3500 | 4000 | 4500 | 5000 | 5500 | 6000 |
| Vertical risw(mm) | 63 | 67 | 71 | 75 | 83 | 87 | 92 |
| Net weight(KN) | 59 | 64 | 68 | 73 | 79 | 84 | 88 |
| Reactions R1(KN) | 53 | 57 | 61 | 65 | 71 | 75 | 79 |
| Reactions R2(KN) | 5.5 | 8 | 11 | ||||
| Motor pauer(KW | 2750 | 2780 | 2810 | 2830 | 2840 | 2860 | 2870 |
| Transport dimensions(H) | 10900 | 11890 | 12880 | 13870 | 14860 | 15860 | 16850 |
1.Manual oiling
2.Built-in chain roller step
3.Inclined handrail
4.Demarcation lamp
5.Handrail inlet
6.Table type traction machine
Optional Features
1.Running direction indication
2.Handrail illumination
3.EHC colorful handrail
4.VVVF controller
5.Skirt panel brush
6.Automatic start & stop
7.Automatic oiling
8.Step lights
FAQ
1. Price
Re: please send us inquiry from Made In China, we will qutoe to you within 24 hours. It's more convenient and appreciated for us if you provide your company details and your detail inquiry for elevators.
2. Payment term
Re: T/T or L/C at sight.
3. Installation&Maintaining
Re: We will send installation&maintaining manual along with the elevator.
Our sugguestion is to hire a professional local company for installation and future maintaining,
once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.
Technician will be sent to the job site if necessary.
4. Shipping&price term
Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.
