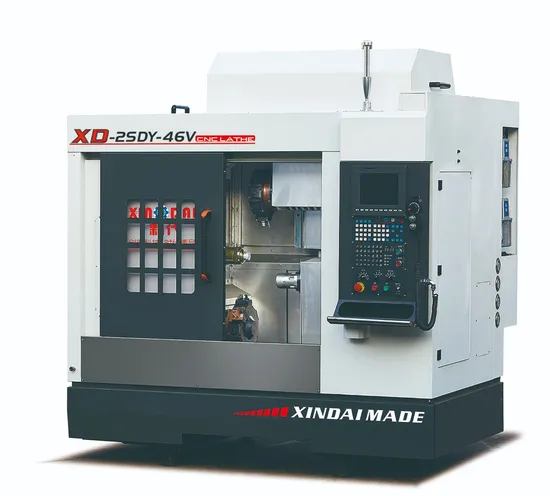

Precision Lathe Double Spindle Turning and Milling Compound Machine
Basic Info.
Model NO.
XD-2SDY-46V
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.03~0.04(mm)
Performance Classification
Economical CNC Machine Tools
Condition
New
Maximum Speed of Power Head (M/Min)
4000
Power Head Transmission Mode (mm)
Gear Wheel
Chuck Size (mm)
Er25
Shank Size (mm)
20*20
Specification
2300*2000*2200
Trademark
xindai
Origin
Foshan, Guangdong
Production Capacity
500
Product Description
1, this is a high-speed and high-precision turning center, the machine tool is equipped with double electric spindle, double twelve station servo power tower, high rigidity roller linear guide, with double Y axis and double C axis function, with the main and auxiliary spindle docking can complete the workpiece bidirectional clamping, to achieve the workpiece front and back processing. It is especially suitable for turning milling when parts are clamped at one time to complete all or most of the processes.2. Spindle box and auxiliary spindle box adopt electric spindle structure, high speed, good rigidity, fast dynamic response, effectively improve the processing accuracy of products. The double motorized spindle structure can be used for workpiece docking under the condition of high-speed rotation, which greatly saves the clamping
3. The tool holder adopts the integrated BMT 12-station servo power tool tower, which has good rigidity, fast tool change speed and high precision.
