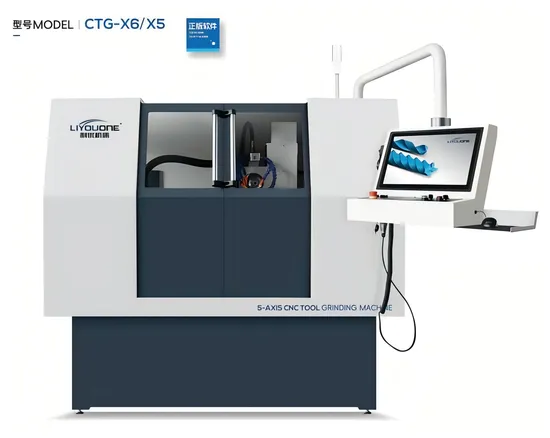

Advanced High-Precision 5-Axic CNC Tool Grinding Machine Ctg-X6/X5 for Industrial Applications

Product Description

SPECIFICATION

	CTG-X6	CTG-X5
X-axis route:	770 mm	710mm
Y-axis route:	340 mm	312mm
Z-axis route:	225mm	170mm
C-axis route:	-190~45°	-190~45
A-axis route:	00	00
Control motor type:	servo motor x5 axis	servo motorx5 axis
Spindle power;	7.5 kw	2.5 kw
Spindle maximum RPM:	8000	8000
Dimension/Weight:	1820*1850*2100mm/3100kg	1600*1680*1950mm/2300kg

Product Description

FEATURE
-Original developed operation software,3D graphical interface is intuitive.
-High precision automatic mechanical arm, the cabinets of mechanical arm and grinding process work separately, no need to wait for each other.
-Universal size of feed tray and gripper.
-Double A axis for automatic wheel trimming and measuring.
-Automatic tool supporter
-Tool automatic honing
FUNCTION
- 5axis CNC inked motion, used for producing/resharpening high precision CNC tool instrument/accessory
-Application type: end mill, drill bit, ball end mill, screw tap, pagoda dill plate drill,center drill, engraving tool, gun-drill, boring cutter,cutter blade, medical instrument,etc.
- Clamp diameter range:1-25mm
-Tool maximum length:400 mm
- Tool maximum flute length:230 mm
Our Service
Pre-Sales Servic
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
Packaging & Shipping
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
Delivery Detail: Shipped in 25-30 working days after payment.
Company Profile
Xuetai Technology (Tianjin) Co., Ltd. Was established in 2024 and is headquartered in the Tianjin Binhai New Area Free Trade Pilot Zone (Airport Area). Since the founding of the company, Its business team have focused on the sales and after-sales service of imported CNC machine tools in Chinese Mainland for 20 years. With the continuous improvement of the quality of Chinese manufacturing and global competitiveness, the company has decided to increase its foreign trade business on the basis of domestic trade, and is committed to promoting and applying Chinese electromechanical products in the international market, covering more than 100 countries and regions around the world. Our main business is the import and export of CNC machine tools and their supporting automation and auxiliary equipment, and we have established long-term cooperation with many internationally renowned brands and Chinese suppliers. With a professional trade team, we accurately grasp market trends, efficiently handle customs clearance, logistics and other links, and provide customers with one-stop trade solutions.
The company always adheres to the concepts of integrity, innovation, and win-win, and is committed to building cross-border commercial bridges, steadily advancing on the international trade stage, continuously expanding its business scope, and achieving mutually beneficial cooperation and common development among multiple parties.
