High Precisionn 2D Qr Code Laser 2.4G Wireless Barcode Scanner

Product Description

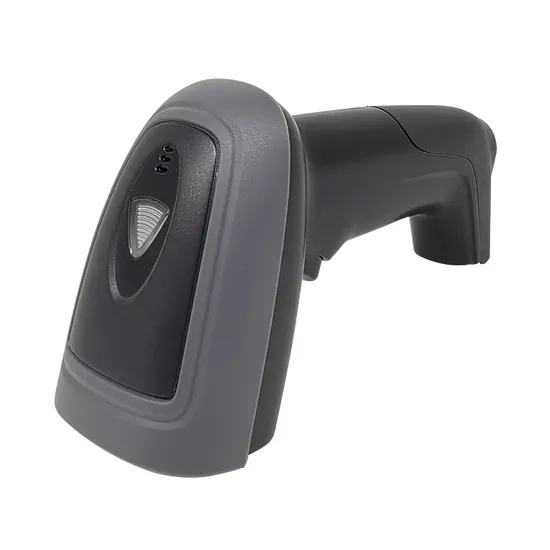

Wireless 2D Barcode Scanner With Charge Base
(M/N:OCBS-W234)


Features:

l Standard Long distance 2.4GHz Communication
l Unblocked can transmit 80 meters
l 1 million pixel high precision scanning engine
l 190mA low power design can scan 40,000 times
l Can work for more than 12 hours in a fully charged state
l Standard charging and receive base
l Big wireless buffer can transfer 1000 characters

PHYSICAL CHARACTERISTICS
Material	ABS+PC+TPU
Power supply	DC 5V ±5%
Operating current	190mA(operating mode)
battery	3.7V 2000mAH 18650 battery
Charging time	6.5hours
Full working time	>12 hours
Weight	170g±5g
PERFORMANCE CHARACTIESTICS
Wireless Method	2.4GHz
Transmission distance	50-80M
Light Source	Red LED Aim +white light LED
Storage	2M(about 40000 pieces barcodes )(can be customized)
Decode capability	Codabar,Code11,Code39/Code93,UPC/EAN,Code128/EAN128,InterLeaved2of5,Matrix2of5,MSI CODE,Standard2of5. QR CODE,DATA MATRIX, PDF417
Resolution	Code39 5mil, QR 8.7mil, PCS45%
Depth of Field	5MIL CODE39: 5--12 CM 15MIL CODE39 : 4--25 CM 10MIL CODE93 : 4--21 CM 15MIL UPC/EAN: 4--25 CM 20MIL QR : 4--25 CM
Scanning Speed	400times/sec
Error rate	1/500million
Setting Mode	Manual, Auto-sensing,Continuous Scanning
Scan Width	5 * 5 cm² -- 30 * 30 cm²
Prompting Mode	Buzzer ,Indicator light(LED)
Print Contrast	Min 35%
Scanning Angles	Roll 0-360°, Pitch±65°, Yaw±60°
USER ENVIRONMENT
IP level	≥IP54
Operating Temp	0 to 50 ºC / 32 to 122 ºF
Storage Temp	0 to 50 ºC / 32 to 122 ºF
Operating Humidity	5 - 95% (non-condensing)
Storage Humidity	5 - 95% (non-condensing)
Electrostatic Protection	15KV
Shock Resistance	1.5M free fall on concrete surface

FAQ
1. MOQ policy
No MOQ limitation for the standard products, but the unit price is different, bigger quantity better price.
For customized production, you can discuss the MOQ with our sales representative directly.
2. Sample Availability & Policy
After customers confirmed the specification, we are very glad to provide samples for testing and qualification.
All samples should be paid before shippment, the samples price is a higher than mass order. When the mass order placed, we can return you the samples cost, or send you more piece products with the shippments.
You can buy the samples from us directly using t/t, western uion, or paypal.


3. Warranty
OCOM is dedicated to providing most cost-effective products and services with reliable quality that will meet customers'satisfication;
We was qualified by global fortune 500 company, and we have the top 1 level trade assurance which 100% protect your money and lead time.
Our warranty of the products is about 12+1 months from the shipment normally, some designated models can have as long as 24 months warranty;
Any product within 30 days of delivery failure occurs shall be deemed invalid delivery (DOA). DOA products will give priority to the replacement, and shipped by courier.
For mass order, we would like to supply some spare parts with shipment for local quickly repair. And after that, you can returned failure parts for rework and analysis.


4. Payment Terms
For mass order, you can pay us by using T/T, LC, Western Union, Escrow or others. About samples order, T/T, Western Union, Escrow,Paypal are acceptable.Escrow Service is powered by szocomtech.en.made-in-china.com.

5. Shipment
We accept all kinds of shipping ways including: express, air, sea, truck, or pick up by customers personally.
