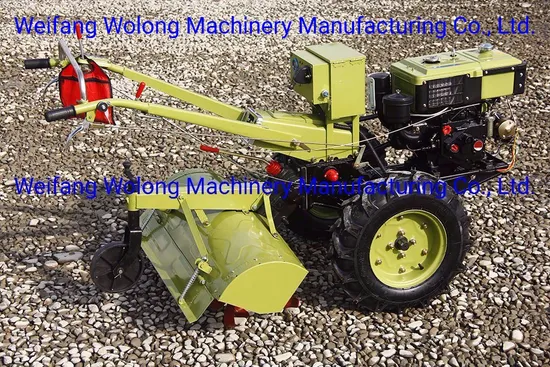

High Quality Walking Tractor with Plough Rotary Tiller Harvester for Farm
| Negotiable | 100 Sets (MOQ) |
Basic Info.
Model NO.
8hp-12hp
Farming Policy
Dry Cultivating Machinery
Power Source
Diesel
Operation
Arable Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Gear Drive
Arbor Configuration
Horizontal Axis
Certification
ISO
Color
Customized
Transport Package
Plywood Case
Specification
12hp
Trademark
wolong
Origin
Weifang
HS Code
8701100000
Production Capacity
120000 Units Per Year
Product Description
1) good for dry field working
2) it can drive many implements, such as rotary tiller, rice and wheat harvester, trailer,plough, flail mower,ditcher,pump,corn seeder, peanuts seeder, etc.
3) more than 30 years technology and design, quality is good.
| Mode | SX-8 | SX-10 | SX-12 | SX-15 | SX-18 | SX-20 |
| Power | 8HP | 10HP | 12HP | 15HP | 18HP | 20HP |
| Structure weight(kg) | 270 | 290 | 300 | 480 | 480 | 480 |
| Overall dimensions (L*W*H) | 2120x 840 x 1160 | 2220x 1250 x 1220 | ||||
| Wheel track( mm) | 680-740 | |||||
| Engine Type | Single cylinder,horizontal,4 stroke | |||||
| Tire size | 6.00-12( w-tire) | 6.00-16( w-tire) | ||||
| Gearbox style | main transmission and vice- transmission , 6 forward gears, 2 reverse gear full power shift. (3 + 1)×2 composition formula circular gear wheel column. | |||||
| Clutch style | riple-plate,single-action,standard,dry-friction,long engaging friction | |||||
| Min Ground Distance | ||||||
| Transmission | two belt | three belt | ||||
| Rated Speed(r/min) | 2200 | |||||
| Drivetrain final drive | single-stage spur gear circle column wheel drive | |||||
| The fuel tank volume (L) | 11 | 13 | ||||
| Engine lubricating oil (L) | 1.5-2 | 2.5-3.2 | ||||
| Gearbox lubricants (L) | 3-3.3 | 3-3.3 | ||||
| The cooling water injection amount (L) | 12-13 | 13.5-15 | ||||
| Basic | Basic | |||||
Q1.Are you factory or trading company?
A: We are factory, our factory located in weifang city.
Q2.How about the working life of your walking tractor?
A: Accordingly to the feedbacks from our customers, our walking tractor can be used for about 5 to 10 years. The quality of our tiller is very good, so do not worry.
