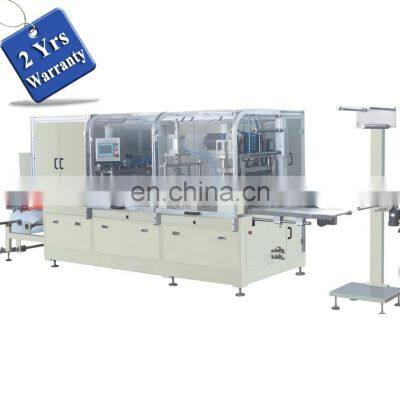

PCL520A automatic egg vegetable plastic tray Thermoforming Machine, pla pp ps food plate box making equipment

Product Description

Product Description
PCL520A automatic egg vegetable plastic tray Thermoforming Machine, pla pp ps food plate box making equipment
Videos
Video demonstration only for reference
Video 01: /watch?v=u94ymI56-o0
Product Description
Features:
1. Suitable for producing PP, PVC, PET, PLA, PS and EPSmedicine trays, plastic cup lids and thermoforming boxes.
2, Speed reducer synchronized with the motion of main shaft reducing the error to the bottom
3. Equipped with photoelectric switch and PLC controller (optional) letting machine run high smoothly and durably .
4. Speed and strokes adjustable, simple and convenient for mold changing, stable running and long service.
5. Material unwinding, cup lid forming, hole punching, cutting and collection process in just one pass.
Parameters:

Name	PCL-520A/B
Max. Cutting Speed	10-35 times/min
Max. Forming Length	350mm
Max. Forming Width	530mm
Max. Forming Depth	50mm (PCL520A) 80mm (PCL520B)
Available Material	PP/PS/PET/PVC/PLA
Material Thickness	0.1mm-1.5mm
Heating Power	22KW
Motor Power	6KW
Power and Total Power	380V 50HZ(220V 60HZ)
	22KW Three-phase and four-wire
Pressure of Water Supply	0.2MPa
Water Consumption	0.3m3/h(Tap water or Circulatingcooling water)
Exhaust Volume	≥0.8m3/min
Air Pressure	0.6-0.8MPa
Machine Install Size	6000×1800×2000mm
Packing Size	6200×2000×2200mm
Max.Width of Material	560mm
Weight	4500KG

Components Brand:

NAME	BRAND
Touch Screen	Kunlun Tongtai
PLC	Siemens Germany
Encoder	Korea
Relay	Schneider France
Proximity switch	Schneider France
power switch	Schneider France
Servo Motor	INVT (Shenzhen, China)
Temperature module	Hexin China
Frequency converter	INVT (Shenzhen, China)
Circuit breaker	Schneider France
Button switch	Schneider France
Emergency stop switch	Schneider France
Solenoid valve	AIRTAC Taiwan
Cylinder	AIRTAC Taiwan
solid state relay ;	Yangming Taiwan
Reducer	Tongli China
pressure reducing valve	AIRTAC Taiwan

We reserve the right to change the component brand without any notification in advance.
Detailed Images

Service Team
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
FAQ
1.Q: What information should i let you know if i want to get a quotation?
A: Detailed size of your finished products in Max and Min?
B: Plastic sheet thickness in mm
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
