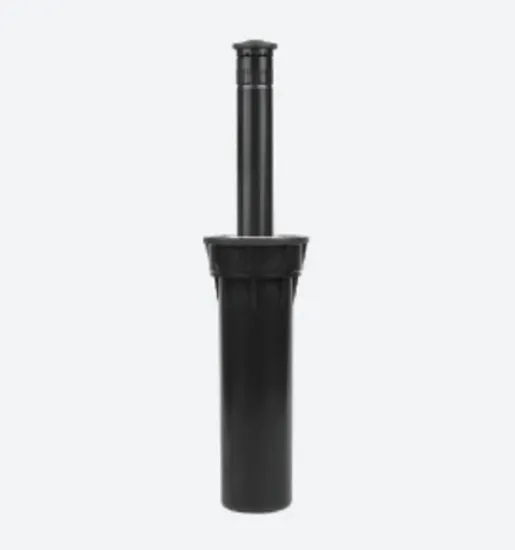

New Fashion Buried Sprinkler Nozzle for Garden Irrigation

Product Description

Technical parameters of ray fixed angle nozzle
Degrees	Pressure	Range	Flux
	bar	m	m³/h
90	2	7.2	0.32
	2.5	7.9	0.38
	3	8.2	0.42
	3.5	8.3	0.5
	4	8.4	0.6
180	2	7	0.45
	2.5	7.5	0.5
	3	7.9	0.55
	3.5	8	0.63
	4	8.2	0.75
270	2	7	0.52
	2.5	7.5	0.58
	3	7.9	0.66
	3.5	8	0.76
	4	8.2	0.9
360	2	6.8	0.72
	2.5	7	0.82
	3	7.5	0.92
	3.5	7.8	1
	4	8	1.15

Parameter Datas
Product Description
Anti aging sealing design
The sealing ring used for the nozzle is injection molded from chemical and corrosion-resistant materials. It can expand and contract with changes in water pressure, even under low flow and pressure, more nozzles can be installed in the same area, reducing costs, and preventing surface dirt from entering the sealing ring and blocking the nozzle during the recovery of the lifting column.High strength spring
The upgraded spring used for the nozzle. It is very sturdy, allowing it to stretch and retract freely in any situation.Overflow valve
The overflow valve used by the nozzle can prevent leakage and accumulation of water in lower terrain, prevent vegetation from withering due to long-term accumulation of water, and also save water resourcesThe strongest nozzle body
Considering the harshest environment, including trampling and heavy machinery crushing, the nozzle adopts a high-strength nozzle and a very sturdy and durable nozzle body. In order to ensure that the top of the nozzle can withstand heavy pressure, the threads of the nozzle body are designed with high-strength tensile force, maintaining a tight connection between the overall structure of the nozzle and greatly increasing its service life.
Packaging & Shipping
Irrigation system
FAQ
Rich experience:
We have been engaged in machining for 10 years. Our company had good reputation with customers from American, Europe, North America, and Australia, India etc. We also have a good team for sale and quality control.
Good service:
We will respond to you within 24 hours. We manufacture non-standard parts according to your drawings. And we will continue to serve you after sales and will be responsible for the mistakes from us.
Low price:
The prices of our production are reasonable! The prices will be much better if your quantity is good.
Pefect quality:
We have strict quality control from producing to delivery. Our company had strong technology support, 80% of our colleagues are master or bachelor's degree. We have cultivated a group of managers who are familiar with product quality, good at modern concept of management.
