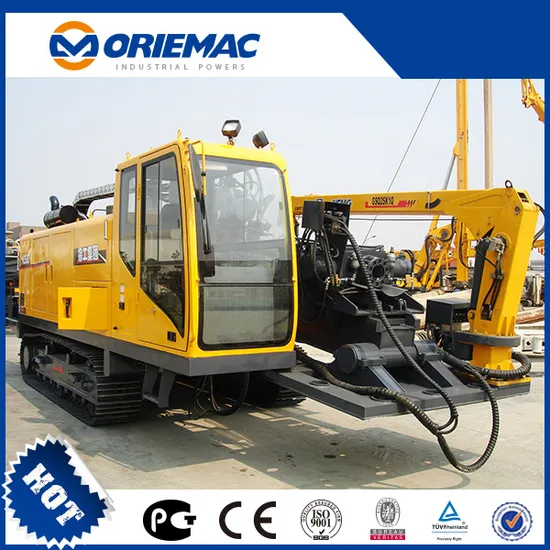

180kn Xz180 Horizontal Directional Drilling Machine for Cable Laying out

Product Description

180kn Xz180 horizontal directional drilling machine for Cable Laying out

Technical Features of XZ180:

? Dual speed power head: drilling and pulling at low speed ensure smooth operation; The power head can slide at faster speed to reduce the auxiliary time and improve work efficiency during the assembly/disassembly of drilling stem with empty load.
? Rubber track: the rubber track has minor influence on the road, lawn, and scenic spot.
? Float clamp: the patented float clamp can effectively extend the service life of the drilling shaft.
? Automatic assembly/disassembly: the drill stem can be mounted and dismounted automatically, which improves the work efficiency, reduces the work intensity and thus reduces the number of work staff.
? Automatic anchoring: through hydraulic pressure drive, the cylinder and low speed large torque motor controls the push/pull of the drill stem, and it's simple and convenient to operate.
? Rotatable control panel: it widens the field of view and reduces operator fatigue.
? Simple to operate: the rotation and push/pull of the power head is controlled separately, and it's simple and convenient to operate. The operator can master the operation skills through short-time training.
Model XZ180

Engine		CUMMINS
Rated power	kW	97
Max.pullback/thrusting	kN	180/180
Spindle torque(max)	N.m	6000
Spindle speed	r/min	0-140
Backreaming diameter	mm	Ø600
Tubing length(single)	m	3
Tubing diameter	mm	Ø60
Entry angle	°	10-22
Mud flow rate(max)	L/min	250
Mud pressure (max)	bar	80
Overall weight	kg	10000
DIMENSION (LxWxH)	mm	6400×2270×2340
