Factory Price Chlorine Dosing Pump Chemical Pump Diaphragm Metering Pumps Price

Product Description

Company ProfileZhejiang Ailipu Technology Co., Ltd. (Former name: Zhejiang ailipu Pump Co., Ltd) was founded in 1997, the registered capital is 51.31 Million RMB, it is a high-tech enterprise which is an integration of design, research & development, production and marketing. Ailipu specialized in automatic dosing pump ,complete set of dosing skid equipment, steam & water sampling analysis system, control software of skid equipment and generator installation etc...For the faster and healthier development, the company was renamed as Zhejiang Ailipu Technology Co., Ltd. In 2014, and the wholly owned subsidiary of Zhejiang Ailipu Engineering Control Technology Co. Ltd. (Registered place: Binjiang District, Hangzhou) was founded in the same year; and to improve the core competitiveness of enterprises, the company established Zhejiang Ailipu Qingyan Exhaust emission purification Co., Ltd. in 2015 together with Japan ACR, Tsinghua University. Metering pump for automobile exhaust emission is one of the National 863 project and the company's Intelligent Power Module (IPM) patent make pure mechanical metering pumps toward mechatronics products, man-machine interface products. At present, the company is the largest enterprise manufacturing automatic metering pump, complete sets of dosing device and fluid quantitative dosing and proportion dosing, but also the first listed company in the metering pump industry. Product Description
Product Description

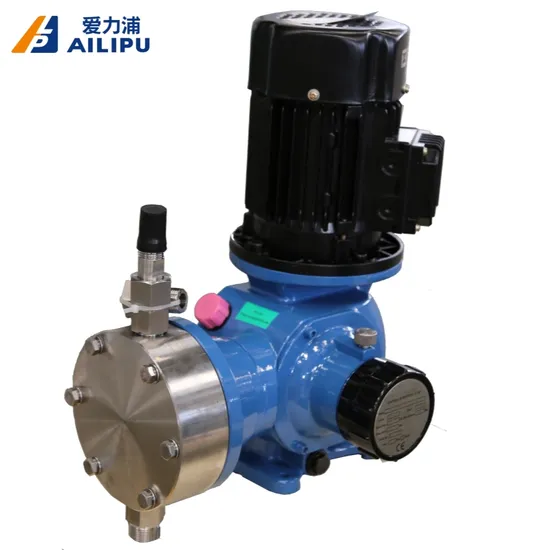

The JXM-D series of dosing pumps offer the high performance with the capacity up to 600L/H and with outstanding
values for pressure applications up to 12 Bar. This series dosing pump is designed for durability and cost-effective,
which is welcome to be used in lots of lines, such as the water treatment, chemical industry, power industry, food
industry and beverage industry, paper industry, textile industry etc.
Product features
★Flow-regulating mechanism: adopting sleeve-type slip axis regulation structure, the device has such strengths as good regulating linearity, strong bearing capacity, and low noise.
★Materials of fluid ends: depending on the corrosion characteristics of transmission media, such materials as PVC,
PVDF, 304, 316L, 20# alloy, 904L and Hastelloy are available for selection.
★Materials pf pump case: made of HT250 cast iron that excels cast aluminum, the pump case is made sure to work for
20 to 30 years at least.
★Pump diaphragm: made of high-strength PTFE, the diaphragm can well resist corrosion and aging with a long service
life. With a dual-diaphragm structure and a diaphragm rupture display/alarm device, even if the diaphragm ruptures, the
metering pump can keep working. In this way, the production is guaranteed to continue and there is enough time to replace
spare diaphragm. When used in normal working conditions, the diaphragm can work for 3 years at least.
★Flow-regulation scope: regulable within 0-100%; highest stroke frequency: 168 pulses/min.
★Flow accuracy: flow stability precision ≤1%; flow reproducibility and linearity ≤ 2%.
Product Data

Model	Rated Flow Rate (L/H)	Rated Pressure (Mpa)	Stroke (mm)	Speed (spm)	Connection (mm)	Motor (KW)	Weight (KG)
JXMD-3.2/1.2	3.2	1.2	1.5	45	DN8	0.25	60
JXMD-4.5/1.2	4.5			58
JXMD-8/12	8			106
JXMD-10/1.2	10			135
JXMD-15/1.2	15		4.5	45	DN15
JXMD-20/1.2	20			58
JXMD-36/1.2	36			106
JXMD-46/1.2	46			135
JXMD-58/1.0	58	1.0	7	45
JXMD-75/1.0	75			58
JXMD-100/0.8	100	0.8	9	58		0.37
JXMD-138/0.7	138		7	106
JXMD-175/0.7	175	0.7	9	106
JXMD-225/0.6	225	0.6	9	135	DN25
JXMD-300/0.6	300		11	106		0.55
JXMD-380/0.5	380	0.5	11	135
JXMD-415/0.5	415		12	135
JXMD-500/0.4	500	0.4		168
JXMD-500/0.5		0.5		168		0.75
JXMD-600/0.4	600	0.4	14	168
