Heady Duty Vmc1580 Famuc CNC Milling Machine Vmc Vertical Machining Center

Product Description

Product Description

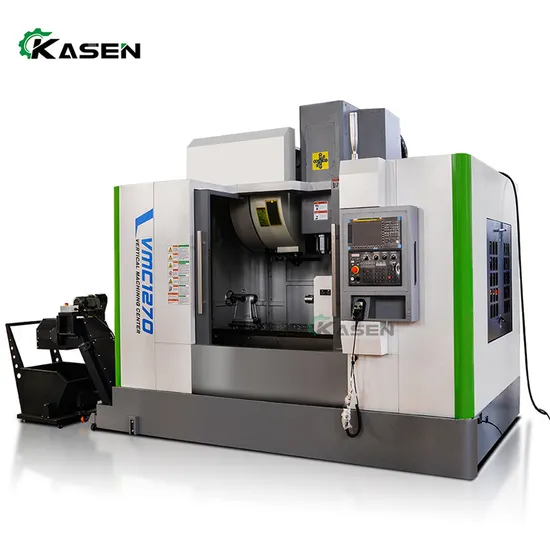

Fanuc Controller Vmc1270 4 Axis Machinery Metal Milling CNC Vertical Machining Centre
Features:
1. The CNC Machine Tool Body Has Undergone a Complete Casting Process To Ensure The Quality Of The Product
2. Taiwan Spindle (Speed, Brand, Can Be Matched According To Customer Requirements)
3. Taiwan Ball Screw And Locking Nut
4. Taiwan Pressure Cylinder
5.Japanese NSk Bearing Germany R+W Coupling
6. Automatic Lubrication System
7.Chip Conveyor At Optional (According To Customer Requirements) Optional Configuration:
System: Syntec,Siemens,Fanuc Mitsubishi
24 Arm Tool Magazine
4th Axis, 5-axis
Spindle Oil Cooling
Chip Conveyor Oil-Water Separator
Air conditioner
Direct-connected electric spindle 12000RPM
Main technical specifications:

Specifications	Units	VMC1270
Table size	mm	1300x700
X axis travel	mm	1500
Y axis travel	mm	800
Z axis travel	mm	700
Max. worktable load	kg	1500
T slot(number-width-pitch)		5-18x125
Max. spindle speed	rpm	8000(Optional:10000 )
Spindle taper	mm	BT50/BT40
Main motor power	kw	11/15
X/Y/Z rapid traverse speed	m/min	24/24/18
Cutting feed speed	mm/min	1-6000
Guide rail type		Linear rail
Distance from spindle axis to column surface	mm	780
Distance between spindle nose and worktable surface	mm	140-700
Positioning accuracy	mm	±0.0075
Repeat positioning accuracy	mm	±0.005
Tool magazine		Arm 24
Max. tool diameter	mm	φ112 (Adjacent)/ φ200(Apart)
Max.tool weight	kg	18
Machine weight	kg	9500
Overall dimension	mm	3400x2480x2960

Our main products are :
CNC Lathe Machine, CNC machining center, CNC Milling Machine, CNC Turning Center, Lathe machine, Wire cutting machine,Milling machines,,Drilling machine, Sawing machine, Grinding machine and other metal-working machines.
Detailed Photos


After Sales Service
SERVICE SUPPORT
we KASEN fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.

1.Warranty

The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.

2.Quick Response

Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most.

3.Online Technical Support

On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions.

4.Overseas Commissioning and Installation
This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
