Precision Temperature Sensor with Adjustable Range for Any Environment

Product Description

Welcome to the esteemed Jiangsu Aice Instrument Technology Co., Ltd., where precision meets innovation. Product Description
1. INTRODUCTION
Introducing our state-of-the-art temperature and humidity transmitter, meticulously engineered for even the most demanding industrial settings. Utilizing a world-class humidity measuring element imported from Switzerland, this device ensures unparalleled accuracy, a broad temperature range, and exceptional resistance to chemical contaminants. With a robust and stable operation, it promises a long service life, providing dual 4-20mA current signal outputs for both temperature and humidity.
Withstand temperatures up to 200°C
Our advanced humidity chip boasts remarkable high-temperature tolerance, performing flawlessly in environments reaching up to 200ºC. The sensor's surface is specially treated to maintain continuous operation even amidst chemical pollutants, making it the superior choice for high-temperature and harsh work conditions.
Product Parameters

Temperature measurement range	-40C~200C (customisable)
Temperature Accuracy	±0.2ºC @25ºC
Temperature Repeatability	±0.1ºC
Temperature long-term qualitative	<0.04ºC
Temperature response time (tau63%)	30S
Supply voltage	24VDC±10%
Current consumption	Max80mA
Electrical Connection	Terminal Block
Parameter calculation	temperature, humidity, dew point, mixing ratio,absolute humidity optional
Analogue signal output	4-20mA
Digital enclosure	RS485 MODBUS RTU
Load	≤500Ω
Shell material	cast aluminium/stainless steel
Structure	One-piece/split
Probe lead length (split)	3 metres maximum (customised)
Transmitter working temperature	-40~70°C
Maximum wiring size	1.5mm
Maximum wiring size	1.5mm

Installation Instructions

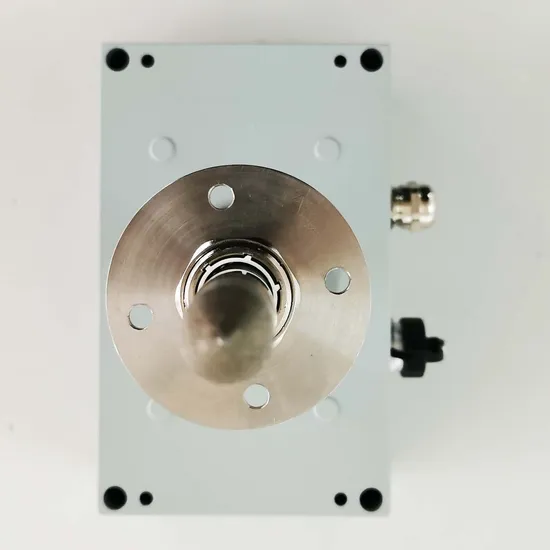

Product Showing
Certifications
FAQ
1. Q: Can I purchase any accessories for your products?
A: Absolutely. Most of our accessories are available for purchase, though some items with patented designs or intellectual property constraints may not be. For further details, please contact our dedicated sales team.
sold. More details please reach out with our sales team.
2. Q: Is it possible to become your exclusive distributor?
A: Yes, certainly. However, this is contingent on your annual purchase volume and the establishment of a long-term partnership built on mutual trust and commitment.
a long-term relationship of trust with each other.
