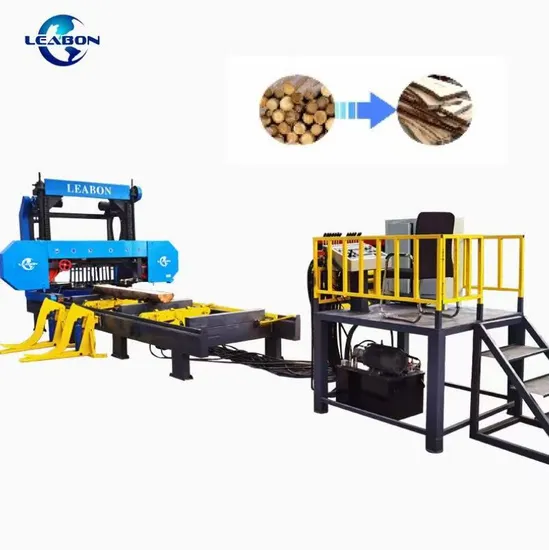

High Quality Portable Bandsaw Mill Log Cutting Sawmill Horizontal Bandsaw Sawmill
| US$7,480.00-15,880.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LBJ1000
Layout
Horizontal
Controlling Mode
Artificial
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO
Customized
Customized
Condition
New
Color
Customized
After-sales Service
Online Service
Model
Lb-700p
Max. Sawing Wood Diameter
700mm
Saw Wheel Diameter
600mm
Max. Sawing Wood Thickness
260mm
Max. Sawing Wood Length
4500mm
Blade Speed: Ordinary Wood Standard Sp
20-25m/S
Power Output of Diesel Engine (Single Cy
13HP
Machine Length (Standard Model)
5800mm
Total Weight(Standard Model)
900kg
MOQ
1 Set
Quality
CE, ISO
Package
Standard Package
Key Words
Band Sawmill for Log
Key Words2
Saw
Key Words3
Wood Plank Sawmill
Transport Package
International Standard Box
Specification
Weight: 900kg
Trademark
Leabon
Origin
Henan, China
Production Capacity
30 Sets/Month
Packaging & Delivery
Package Size
5900.00cm * 1000.00cm * 1600.00cm
Package Gross Weight
2400.000kg
Product Description
High Quality Portable Bandsaw Mill Log Cutting Sawmill Horizontal Bandsaw SawmillIntroduction1) Portable Horizontal Band sawmill is to meet the requirements of customers in Africa and South America.
2) It is simple installation, easy operation, labor saving and high productivity.
3) This machine can be drove by either electric motor or diesel engine.
4) It is widely used by the timber process enterprises in the virgin forests area. 1.Hydraulic Automatic Horizontal Sawmill
Product Description
Combined with hydraulic automation technology.the hydraulic horizontal band sawmill realizes all-digital intelligent control. Chinese and English operating systems, automatic wood rotation, sawing and cutting of large diameter wood,simple operation of equipment, precise cutting thickness, improves wood usage rate. Technical Parameter
| Model | LBJH-700A | LBJH-1000A | LBJH-1300A |
| Max sawing wood diameter | 700mm | 1000mm | 1300mm |
| Saw wheel diameter | 700mm | 700mm | 700mm |
| Max sawing wood thickness | 300mm | 300mm | 300mm |
| Standard sawing wood length | 4500mm | 4500mm | 4500mm |
| Electric motor power | 18.5KW | 22KW | 30KW |
| Hydraulic motor power | 3KW | 4KW | 4KW |
| Band saw blade width | 40-80mm | 40-80mm | 40-80mm |
| Machine length | 6000mm | 6000mm | 6000mm |
| Weight | 3000kg | 3500kg | 3500kg |
2.Horizontal Band Saw
Horizontal Band Sawmill Specification (Electric Type)
| Specification's Items | LB-700E | LB-1000E | LB-1300E | LB-1700E |
| Max. sawing wood diameter | 700mm | 1000mm | 1300mm | 1700mm |
| Saw wheel diameter | 600mm | 700mm | 700mm | 700mm |
| Max. sawing thickness | 260mm | 300mm | 300mm | 300mm |
| Blade speed: ordinary wood standard speed | 20-25m/s | 20-25m/s | 20-25m/s | 20-25m/s |
| Max. Sawing Length of the wood | 4500mm | 4500mm | 4500mm | 4500mm |
| Power output of electric motor | 7.5KW | 11KW | 15KW | 18.5KW |
| Lifting motor power | 1.1KW | 1.1KW | 1.1KW | 1.1KW |
| Tensioner blade mode | Manual | Hydraulic | Hydraulic | Hydraulic |
| Rail length (standard model) | 5900mm | 5900mm | 5900mm | 5900mm |
| Total weight(standard model) | 900KG | 1100KG | 1300KG | 1400KG |
Horizontal Band Sawmill Specification (Diesel Type)
| Specification's Items | LB-700P | LB-1000D | LB-1300D | LB-1700D |
| Max. Sawing wood diameter | 700mm | 1000mm | 1300mm | 1700mm |
| Saw wheel diameter | 600mm | 700mm | 700mm | 700mm |
| Max. sawing wood thickness | 260mm | 300mm | 300mm | 300mm |
| Max. sawing wood Length | 4500mm | 4500mm | 4500mm | 4500mm |
| Blade speed: ordinary wood standard speed | 20-25m/s | 20-25m/s | 20-25m/s | 20-25m/s |
| Power output of diesel engine (single cylinder) | 13hp | 22HP | 25HP | 27HP |
| Machine length (standard model) | 5800mm | 5800mm | 5800mm | 5800mm |
| Total weight(standard model) | 900KG | 1100KG | 1300KG | 1400KG |
Different Type
CNC Type
Application
Packing and Shipping
Our Service
(1) Warranty: One year without the spare parts. (2) The professional and timely after-sales service: 24 hours. (3) Provide the relative video of the machine installation and instruction : Yes. (4) Voltage : Customized. (5) The engineer service oversea: Available.
