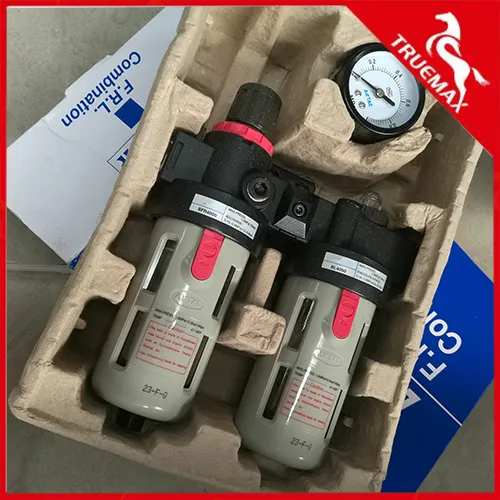

Air Filter Combination Gfr400-15-a-F1 for Hls120 Hls180 Concrete Mixing Batching Plant
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
GFR400-15-A-F1
Mixing Drum Shape
Disc
Stirring Type
Diving
Working
High Speed Mixer
Connecting
Screw
Material
Alininum
Working Area
Low Pressure
Working temperature
Normal temperature
Mixer Type
Double Ribbon Mixer
Application
Liquid with Suspended Solids, Powder, Viscous Fluid, Liquid, Granules
Layout Type
Verticle
Additional Capabilities
Milling, Drying, Granulating, Coating
Operating type
Cycle Operating
Transport Package
Box
Trademark
TrueMax
Origin
China
Production Capacity
100000piece/Yeas
Product Description
Air Filter combination GFR400-15-A-F1 FOR Hls120 Hls180 Concrete Mixing Batching PlantProduct Details
| ItemModel | YGFC200-06 | YGFC200-08 | YGFC300-08 | YGFC300-10 | YGFC300-15 | YGFC400-10 | YGFC400-15 | ||
| Caliber Size | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT1/2 | PT3/8 | PT1/2 | ||
| Fluids | Air | ||||||||
| Filtration | 40μ50μ 40μ or 50μ | ||||||||
| Applicable Pressure Range | 0.15~0.9Mpa(20~130Psi) | ||||||||
| OperatingPressure | 1.0Mpa(145Psi) | ||||||||
| Max Pressure | 1.5Mpa(215Psi) | ||||||||
| OperatingTemperature | 5~60ºC | ||||||||
| Capacity Of Filter Cup | 10CC | 40CC | 80CC | ||||||
| Capacity Of Oil Feed Cup | 25CC | 75CC | 160CC | ||||||
| Suggested Lube | ISO VG 32 ISO VG 32or Same Grade Oil | ||||||||
| Weight | 425Vg | 980g | 1950g | ||||||
| (L/min) Standard Rated Flow (L/min) | Regulator & Filter | YGFR200-06 | YGFR200-08 | YGFR300-08 | YGFR300-10 | YGFR300-15 | YGFR400-10 | YGFR400-15 | |
| Lubricator | YGL200-06 | YGL200-08 | YGL300-08 | YGL300-10 | YGL300-15 | YGL400-10 | YGL400-15 | ||
| Series code | YGFC200:G200(G200 Series Tow-point Combination), YGFC300:G300(G300 Series Tow-point Combination), YGFC400:G400(G400 Series Tow-point Combination) |
| Caliber Size | 06:PT1/8 ,08:PT1/4 ,10:PT3/8 ,15:PT1/2 |
| Drian Type | Blank:Pressure Differential Differential Drain Style, M:Standard Manual Drain Type , A: Auto Drain Type |
| Type code | Blank: Standard Type, L:Low pressure Type |
| Pressure Gauge Code | Blank:Additional table , N:No strings attached table |
| Pressure Gauge Type | F:Square table , C:Traditional table |
| Calibration units | 1:Mpa , 2:Psi |
| Filter Precision | Blank:40μ , W:5μ |
| Tooth Appearance Code | Blank:PT PT Tooth Code , G:PS PS Tooth Code , T:NPT NPT Tooth Code |
| ItemModel | GFC200 | GFC300 | GFC400 |
| Body | Aluminum | ||
| Umbrella Baffle | POM | ||
| Air Guider | POM | ||
| FilterElement | 40μ:Tin Copper; 50μ:Fiber | ||
| Drain Bowl | PC | ||
| Leak Post | POM | ||
| Pressure Knob | POM | ||
| Adjusting Seat | POM | ||
| Adjusting Spindle | HPB5-1 | ||
| Diaphragm | SUS304 SUS304Corered with rubber | ||
| Pressure Spring | Stainless steel | ||
| Spring | Stainless steel | ||
| Filling plug | Brass | ||
| Bowl | PC | ||
| Ejector pin | Brass | ||
| Oil bowl | PC | ||
| Bowl Guard | -- | SPCC | |
Notice: Delivery time : (3-5 days) Packinf: Carton or wooden case packing Warranty: 3-12 months 24 hours online service
Company information:
TRUEMAX specialized in the production of construction machinery spare parts, such as: concrete batching plant, concrete truck mixer, concrete placing boom, concrete pump, concrete line pump, concrete truck-mounted pump, building hoist.
