50t Telescopic Over Height Frame Spreader with Container Spreader Adapter

Product Description

50t Telescopic Over Height Frame Spreader with Container Spreader Adapter
Product Description:
It is comprised by two parts which including an over-height frame and a park standing. The park standing can be used for protecting the OHF from been worn out.In addition, it is applicable for the maintenance of relevant equipment. It can be attached by the forklift, which makes it convenient to move in the yard.
Drawing:
Technical specification:
1. Model: OH0100
2. Effective height :2896 mm
3. -high self-weight: 5.0 tons (2.1 tons hanger, chassis 2.9 tons)
4. Scope of application: 20,40,45 feet ISO compliant containers.
.
5. Spreader rated lifting capacity (spreader): 40 tons. ultimate load 50tons.
6. Applicable ambient temperature: -10 ~ +55 ºC.
7. Overall adapt of flange connection (easy to load containers ).
8. Connection method: Over-height spreader frame and container connected by rotating pin.
9. Spreader on the hole are installed M10 * 1 flat brass nozzle .
10. Material selection: the main material Q355.

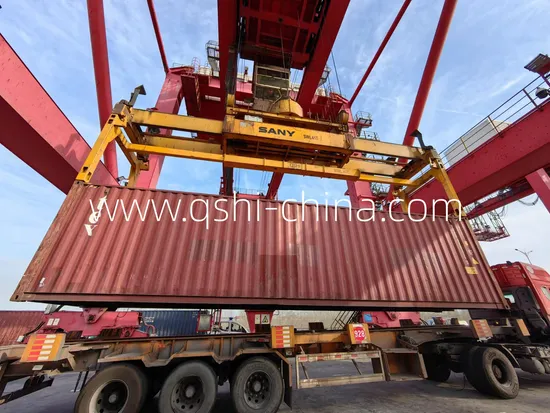

Pictures:
Loading test:
Packing:
Service:
1. Pre-sale services:
a: Design customized project for clients.
b: Design and manufacture products according to clients special requirement.
c: Train technical personnel for clients.


2. Services during the sale:
a: Help clients to find reasonable freight forwarders ahead of delivery.
b: Help clients to draw solving plans.

3. After-sale services:
a: Assist clients to prepare for the construction scheme.
b: Install and debug equipment.
c: Train the first-line operators.
d: Examine equipment.
e: Take initiative to eliminate the troubles immediately.
f: Provide technical exchanging.
