Recycled Pellets PVC Plastic Extruder Granulating Machine Production Line

Product Description

Product Description
PVC Twin Screw Plastic Granules Extruding Granulator Machine
Equipment Features
For Extruder Temperature Control SystemDigital PLC Control or Manual Temperature Control Meter
1.Easy Operation Reliable Performance
2.High Extrusion Efficiency
3.Easy Maintenance
Application
Rigid PVC granule, soft PVC granule for different kinds of profile or cable.
Detailed Photos

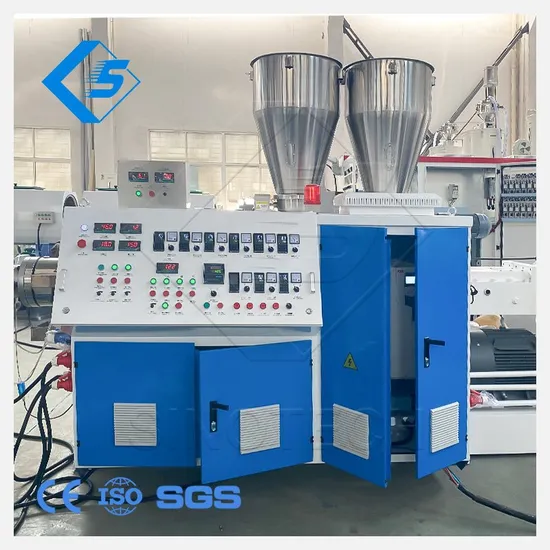

01 Conical twin-screw extruder 02 Powder loader
SNJZ Series conical twin screw extruder has the features of good plasticization,
good mixingstable extrusion,high outputwide application and longlife service. Load raw materials into the hopper.
03 Air cooling system 04 Die face cutting system
The granules will be cooled during the air transportation. Cut the materials into granules. 05 Vibrator 06 Storage silo
To select suitable size granules. The granules finally arrive at the storage silo
07 Auxiliary machine:Heating and cooling mixer
The heating and cooling mixer is the optimum solution for complex mixing challenges.The systems are characterized by their outstanding product preparation in the heating phase and high-efficiency cooling performance.
It is designed for high-volume throughputrapid processing and short cleaning time.

Product Parameters
Main Technical Parameter

Model	SNJZ51/105	SNJZ55/113	SNJZ65/132	SNJZ80/156	SNJZ92/188
Extruder model	SNJZ51/113	SNJZ65/132	SNJZ65/132	SNJZ80/156	SNJZ80/156
Main motor(kw)	18.5	30	37	55	90
Capacity(kg/h)	120	180	250	350	600
Air cooling	1	1	2	3	3

Production Process
Material→Heating Cooling Mixer→Material Feeding→Conical Twin Screw Extruder→Extrusion Die Head and Die Face Cutting→Air Cooling→Storage Silo 1. Weighing: Raw materials shall be weighed according to the process. The higher the accuracy, the better. 2. Mixing: Mix the raw materials evenly according to the formula of plastic products.3. Raw material are fed into the barrel of the extruder through the hopper.4. The screw rotates continuously, and then the plasticized material is extruded from the twin screw extruder and cut into granules in the hot cutter. 5. After air cooling and forming, the plastic products is completed.6. Granules are sent to the storage silo.
Company Profile
Certifications
FAQ
Q: How about your after-sale service ? We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.Q: What is the lead time?For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)Q: What is the warranty period for your machine ?12 months warranty for components and technical support .Q: Do you provide custom machines?Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer's needs.Q: How can we install the machine when it arrives?We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.Q: What's the advantage of SINOTECH?We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
