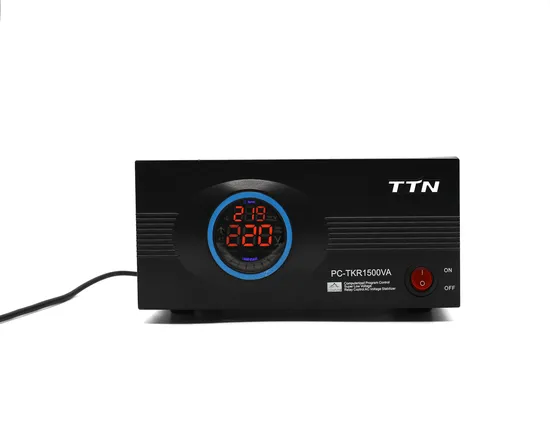

Ttn PC-Tkr 500-2000va Single Phase Automatic Voltage Stabilizer Regulator Price

Product Description

I. Advantages of our products
1. High technology: relay control + programmed control computerized
2.Unique design: LED display which can show all protection functions.
3.Quality ensurance: every spareparts is made by ourself,for example,transforma,PCB.
4.Perfect protection function:over/low voltage protection,over-heat,over-load protection
5.High efficiency:more than 90%
6.experienced manufactory: more than 20 years

II. Specifications(technical data):
Model: PC-TKR Series Relay Control Single phase
Capacity: 500-2000KVA
Input voltage: AC150V~270V or customize
Output voltage: 220V+/-10%
Remark: pls kindly check the detail information in following chart

III. Taking part in Overseas fair
Canton Fair
HK Electric Fair
Moscow Electric Fair
India International Trade Fair
Nigeria Electronic Fair

IV. SERVICE OCCASIONS:
Computer
Test equipment
Lighting equipment
Alarm and security system
X-ray equipment
Medical equipment
Duplicator
Broadcasting equipment
Numeric control machine tool
Industrial robot
Photographic processing equipment
Laboratory instrument
Hi-Fi equipment
V. Product Paramter

Model	PC-TKR500VA	PC-TKR1000VA	PC-TKR1500VA	PC-TKR2000A
Technology	Relay Control System+Micro Computer Programmed Control
Led Display	Info	Input voltage/output voltage/Load Usage/Time Delay/Normal Working/Protection
	Protection	Over voltage	output voltage>=243±4v
		Low voltage	output voltage<=188±4v
		Over loading	More than 120%
		Over temperature	120°±10%
		Delay time	Long time(255 second)/Short Time (5 seconds)
		Circuit beaker	Regulator/bypass
	Language	English/Russian/Chinese
Input Voltage	AC150-270/135-270/105-270/80-270V
Output Voltage	220V±10%
Frequency	50/60 HZ
Phase	Single Phase
Efficiency	>=90%
Ambient Temperature	-15°-45°
Relative Humidity	<95%
Waveform Distortion	no additional wave form distortion
Insulating Resistance	Normally more than 2MΩ
Specification
Power	500va	1000va	1500va	2000va
Package Size(cm)	50.5*28.5*41.5	50.5*28.5*41.5	50.5*28.5*41.5	50.5*28.5*41.5
Package(pcs)	6	6	6	6
G.M.(kgs)	17	20.56	21.85	27.35
