Automatic Woodworking Cabinet Double Trimming Corner Rounding Wood Edge Banding Machine

Product Description

Product Parameters

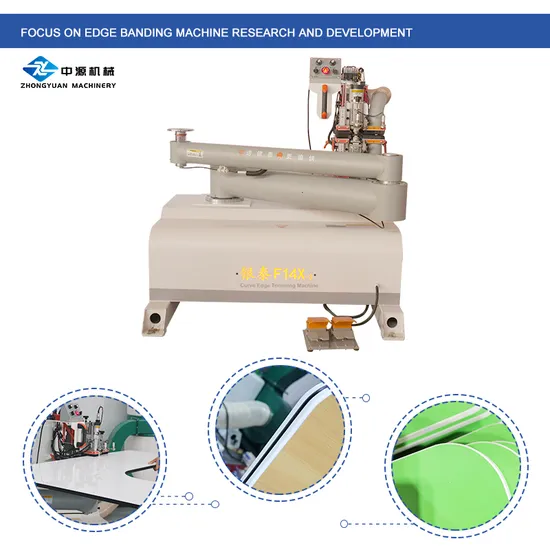

F14X-3 Curve Edge Trimming Machine:
The machine head can be rotated 180° to adapt to a variety of plates.
No need to adjust the plate thickness, quickly adapt to different plate thicknesses, no need to adjust the machine.
Automatic acceleration and deceleration, automatic deceleration when turning, automatic acceleration when going straight, reducing mistakes.
Photoelectric induction (start-stop switch), if no plate is detected within 5 seconds, it will automatically stop, protecting worker safety and saving energy.
Automatic glue clearing device, spray glue remover on both sides.
Scrape along with the movement. After the trimming is completed, scrape off the excess edge strips and glue lines (trimming, clearing the glue, and scraping the edges at once).
The contoured power wheel provides uniform forward assistance during trimming, making the trimming of special-shaped plates smooth.
Comes with a small platform as standard, making it easy to handle even small plates.
Efficient vacuum device, dense brush and 150mm thick vacuum tube, sucking debris into the vacuum cleaner.
Arm length 225cm, weighing 100≤100kg.The round stacked arms increase the load-bearing capacity and make the stacked arms lighter and more flexible in operation.
High-strength frame, processed by gantry milling cutter, high flatness and strong load-bearing.

Model	F14X-3
Voltage	220V/50hz/1phase
Total power	1.7kw
Air pressure	0.5-0.7Mpa
Edge banding strip thickness	0.5-3mm (related to edge banding strip material)
Trimming plate height	<14mm single side trimming, 14-70mm up and down trimming
Rotated angle	180°
Trimming speed	0-24cm/s
Weight	340kg
Packing size	1330*1220*1640mm

Detailed Photos

Product Application
Customer Photos
Company Profile

Certifications
FAQ
Q1: I already have an edge banding machine and I would like a trimming machine. Do you have any recommendations?
A: Yes, we have a matching trimming machine. You can choose the product that suits you according to your actual production needs. Of course, we will also ask you some questions, such as plate size, plate thickness, equipment voltage, number of workers, and so on. With so many types of products, there is always one that is suitable for you.
Q2: Can your edge banding machine use PUR adhesive?
A: PUR glue has high requirements for glue pots. We recommend using models such as F14620-3700-3350 for up glue pots, depending on your specific needs.
Q3: Are you a factory or a trader?
A: We are a 20 year source production factory with rich production experience and a total of 8000+customers. We can provide you with thoughtful and accurate after-sales service.
Q4: How should I make the payment?
A: Firstly, you will pay a 50% deposit as a prepayment, and then we will start producing the equipment. After the equipment is completed, I will send you photos and videos, and you can make the remaining payment. After receiving all the payment, we will arrange for the fastest container to ship to you. You will receive the equipment soon, and I will arrange professional technicians to coordinate with you regarding installation issues.
Q5: How long is the delivery time?
A: Conventional equipment takes 10-12 days, customized voltage or other parameters take around 30-45 days.
