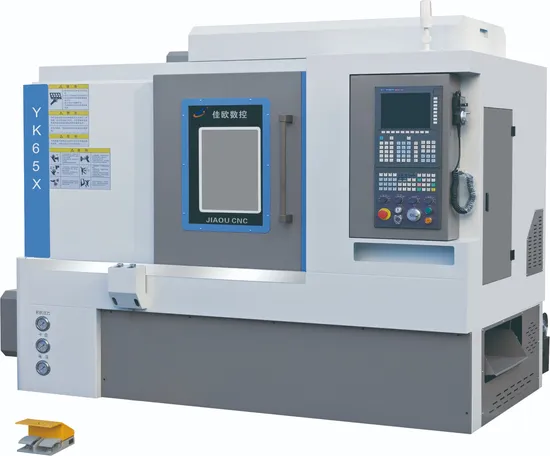

High Precision 90 Degree Y Axis CNC Lathe Machine with Bmt65

Product Description

Product Description

High-Precision Multi-Axis Machining: Single-spindle CNC lathe with 90-degree Y-axis capability for complex 3D contouring and off-center milling operations.
Integrated Mill-Turn Functionality: Combines turning and milling capabilities in one machine, reducing setup time and increasing productivity for complex workpieces.
BMT65 Power Turret: Robust BMT65 turret system enables high-speed tool changes and superior rigidity for enhanced machining performance.
Premium Component Sourcing: Critical precision parts sourced from industry leaders in Taiwan, Japan, and Germany, ensuring reliability and longevity.
Efficient Complex Part Production: Ideal for manufacturing intricate metal components in a single setup, minimizing handling and improving accuracy.
Reduced Cycle Times: Multi-tasking capabilities allow for simultaneous operations, significantly decreasing overall processing time.
High-Precision Contouring: Advanced control system enables smooth, accurate contouring for superior surface finishes on complex geometries.
Versatile Machining Solutions: Suitable for a wide range of industries including aerospace, automotive, medical, and general precision engineering.
Enhanced Productivity: Single-setup machining reduces work-in-progress and streamlines production workflows.
Precision-Engineered Spindle: High-speed, thermally-stable spindle design for consistent accuracy in both turning and milling operations.

Product Parameters

Machining Capacity	Swing over bed	mm	ф500
	Swing over carriage	mm	ф250
	Max machining length	mm	450
	Max turning dia	mm	ф400
	Distance between centers	mm	500
	Max bar material size	mm	ф52
	Interference diameter	mm	ф230
Spindle	Spindle nose	-	A2-6
	Spindle bore	mm	ф67
	Taper of spindle inner hole		Metric 70(1:20)
	Spindle motor power	kw	11
	Chuck size	inch	8
	Spindle speed	rpm	3000
Axes specs	Axes travel	mm	X270 Z540 Y±100
	Axes fast moving	m/min	X20 Z22 Y18
	Repeatable positioning accuracy	mm	X0.003 Z0.005 Y0.003
Tool type	Turret	-	12-125-380-BMT65
	Tool holder size	mm	25*25/ф40
Tailstock(optional)	Quill inner taper	MT	4#
Other specs	Programming		ISO standard
	Cooling motor	w	650
Measurements	Dimension	mm	around 3500*1850*2400
	Weight	kg	around 4050

Certifications
We have our own independent R&D and design team and have applied for a number of technical patents. From high-precision spindles to bed bodies to external sheet metal, the R&D and design department designs and the production department implements, giving us full control over design and production autonomy, making it more flexible and changeable.
Company Profile
Yuhuan Jiaou CNC Machine Tool Manufacturing Co., Ltd. is located in Bingang Industrial City, Shamen Town, Yuhuan City. Our company is a technology-based enterprise, specializing in the R&D, production and sales of CNC machine tools, and has a professional technical and sales service team who has long been engaged in the design and development of CNC machine tools, constantly innovating and advancing with the times. The precision CNC lathes designed for the metal working, including gang type, turret type, mill-turn compound type, can easily handle complex, precise, small-batch, and multi-variety part processing problems, and provide customers with targeted and efficient metal cutting solutions, creating more possibilities for their intelligent and automated production processing.
Equipped with a complete quality testing system and sophisticated testing instruments, our company has passed the ISO9001 system certification to ensure that we provide customers with high-quality equipment and fast after-sales service.
We adhere to the business philosophy of "Detail first, customer first, and creating maximum value for customers", and always implements the quality guideline of "Quality first, continuous improvement". We provide full-service from pre-sales to after-sales, from products to designs, and wholeheartedly commit to providing customers with thoughtful, advanced, high-quality, cost-effective equipment.
Creating the greatest value for you is of most significance for Jiaou's efforts!
Yuhuan JIAOU CNC has multiple production workshops, from bed component blank processing, optical and mechanical assembly, installation and debugging, sheet metal laser cutting and bending, external protective sheet metal spraying, etc., all of which are independently produced and processed.
Packaging & Shipping
FAQ
Q: What's the availability of spare parts?
A: We maintain a comprehensive stock of spare parts with quick delivery options.
Q: What CNC control system does it use?
A: Our machines can be equipped with different brands of CNC control systems, such as FANUC, SIEMENS, SYNTEC, KND, GSK, etc.
Q: Do you provide operator training?
A: Yes. We welcome your engineers or operators to have operator training at our site. And we are able to provide online technical support as well.
Q: What's the lead time for delivery?
A: Faster delievery time. 10-20 days for our standard regular machines, the delivery time of customized machine need to be negotiated.
Q: Is customization available?
A: Yes. We have rich experience in custom processing and can provide flexible customization services from bed to processing parameters to appearance.
