Best Selling Gantry Moveable CNC Steel Drilling Machine CNC Gantry Moveable Drilling Machine

Product Description

Best Selling Gantry Moveable CNC Steel Drilling Machine CNC Gantry Moveable Drilling Machine
Product Description
PD series CNC plate drilling machine mainly do the drilling process of the junction plate and base anchor which used widely in steel structure, iron tower, bridge, and machining industries etc., and also used widely for flange drilling process.
THE PRODUCT STRUCTURE FEATURES
1. CNC slid drilling head, can control the depth of hole, have the function of drilling blind hole, expanding hole, and chamfering.
2. PLC control system can assure the drilling positional accuracy
3. The machine have four processing area, 12 hydraulic clamp can clamping four groups of working pieces, can assemble and disassemble the work piece at the same time of drilling
4. LCD display by PLC control system
5. Programme based on windows, Auto CAD , and support lofting software TEKLA
6. Auto chip-removal system, cooling liquid are circular
7. The Key machanical, hydraulic, electronic parts adopts global brand name
8. The whole machine are integrated designed, don't need to lay the foundation
Product Parameters

Model	PD/PCD2016	PD/PCD2016/2	PD/PCD3016	PD/PCD3016/2
Processing scope(mm)	2000×1600	2000×1600	3000×1600	3000×1600
Stack thickness(mm)	100
Spindle number	1	2	1	2
Spindle model	Morse 4 # taper hole
Spindle rotating speed(r/min)	120-560	120-560	120-560	120-560
Feed mode	Hydraulic automatic stroke drilling power head
Feed stroke (mm)	180
Drilling diameter (mm)	φ12 ~ φ50 (optionφ12 ~ Φ63)	φ12 ~ φ50 (optionφ12 ~ φ63)	φ12 ~ φ50 (optionφ12 ~ φ63)	φ12 ~ φ50 (optionφ12 ~ φ63)
Main motor power (Kw)	5.5( 7.5)	5.5×2 /7.5×2()	5.5(7.5)	5.5×2/7.5×2(option)
Number of clamping cylinders	12
Clamping force (KN)	7.5
Clamping system	Double side button control of gantry
Hydraulic pump pressure (Mpa)	6

Detailed Photos
PD SERIES DRILLING MACHINE

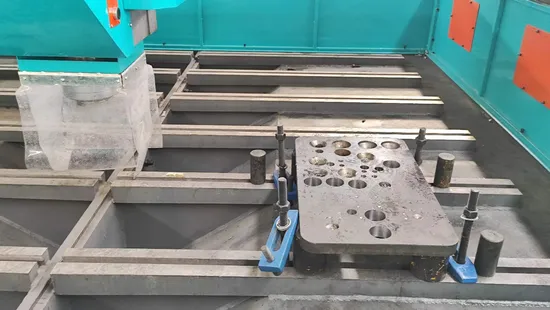

WORKPIECE
Packaging & Shipping

Our Advantages
Professional Technical Team: We own a professional technical team who devote to the advanced design on the machines and better performance with plenty experience more than 15 years.
Various Patents: we have been got many patents on various models of our products these years and keep on developing new products.
High Products Quality:We have been gained a lot of good reputation among our customers and never got any quality complaint until now
Professional Experienced Sales Team:
Our sales team have average 10 years ' experience in export process, they are qualified to provide the most reasonable proposal for you and resolve your problems on machines selection and usage immediately once you ask.

FAQ
1. What's your advantage ?
A: We assure each machine dispatched from our factory a long-life usage with easy operation and humane design.We consider help our customer to hence the production efficiency and save your human power as our aim.
3. What about the warranty of your products?
A: We provide 12 months warranty since the machine arrived at customer site , free charge of spare parts and oline maintenance service 4. Where are you? Can l visit you?
A: our factory located in Shandong province, china, welcome to visit us at any time. 5. How about the delivery time?
A: For standard model, the delivery usually 25 days since the advance payment receipt. For the customized products, the delivery time will follow our agreement with customer.We never receive any complain from our customers for the delivery time 6. What kind of payment does your company support?
A: TT,100% LIC at sight,Cash, Western Union are accepted. If you have other payment terms, welcome discuss with us

Our Service
1. OEM DESIGN AND PRODUCTION:
Our active engineer and design team can make the special machine according to your special requirement. 2. DELIVERY IN TIME ASSURANCE:
We assure the machines you ordered will be delivered at promised time
4. FREE INSTALLATION AND TRAINING:
We provide the installation and training by online video support; local installation and training service team; send engineer for installation and training, installation operation video provided.
