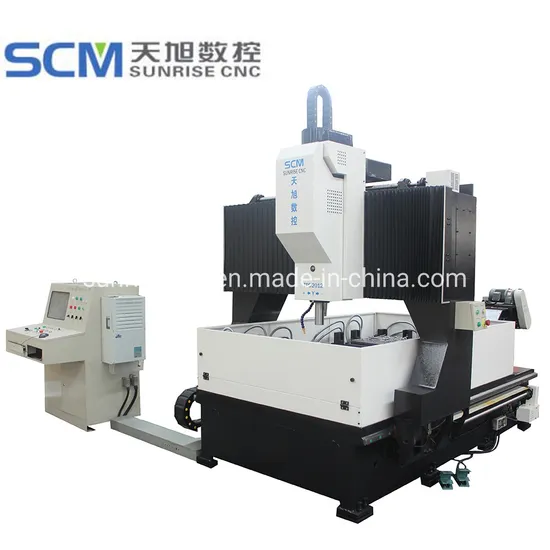

CNC Gantry Drilling Machine for Plate

Product Description

Applicable Industry:
This is special CNC machine for drilling plates and flanges, mainly used in steel structure, tower, bridge and other industries.
Product Feature CNC slider and drilling unit head, can control depth of holes, with function of drilling blind hole, reaming, chamfering. 2. Machine is controlled by PLC & servo motor, ensure precision positioning .
3. The machine have 4 work area with individual reference, workpieces can be clamped by hydraulic clamps at any area for drilling.
4. Machine equips with computer for software, it can use Auto CAD drawing directly, it also can process NC file which generated by TEKLA.
5. Scrap cleaner can collect all iron scraps and cutting liquid which is recycling.
6. The key mechanical, hydraulic and electric parts are all famous brands.
7. Optimized integration design for complete machine, no foundation requirements.

Working conditions:
Working environment:	Working temperature:	-10ºC ~ 40ºC
	Voltage:	380V(Or some 420V), 50Hz, 3 Phase
	Fluctuation of voltage:	±5-10%
Air supply:		≥0.5 MPa

Specifications:

Model	TPD2012		TPD2016		TPD3016
machine type	Gantry movable single spindle CNC drilling machine
Max work piece size (L×W)	2000×1200mm		2000×1600mm		3000×1600mm
Thickness of work piece	5~100m If work piece is small size, it can be overlapped and processed at the same time.
Height from table top to ground	800mm
Drill unit type	sliding table, servo control
Clamp type	Hydraulic clamp with 12 clamps
Drill head quantity	1
Max drill diameter	Φ50mm
Power of main motor	5.5 kW
Spindle speed	120~560r/min (frequency control)
Spindle vertical stoke (Z axis)	350mm
Drive mode of gantry longitudinal (X axis)	Guided by linear rolling guide; driven by AC servo motor and ball screw pairs.
Servo motor power of X axis	1.3 kW
Power head lateral driving type (Y axis)	Guided by linear rolling guide; driven by AC servo motor and ball screw pairs.
Servo motor power of Y axis	1. 3 kW
Servo motor power of Z axis	0.85 kW
Motor power of chip cleaner	0.4 kW
Motor power of cooling system	0.42 kW
Motor power of Hydraulic station	2.2 kW
Clamping type	Attach Morse 4# quick chuck and 3#, 2# reducing sleeve
Electric control cabinet	With dustproof ventilating device and LENOVO computer
Electric control type	MISTUBISHI PLC
CNC axis quantity	3
With function of CAD/CAM automatic generation
with function of hole site memory (memory hole site if power off suddenly) and drill pause
Total power	≈12 kW
Total weight	About 5200	About 6200		About 7200
Overall dimension	4.5×2.21×2.85	4.5×2.61×2.85		5.5×2.61×2.85

Main Components:

NO.	NAME	MODEL	QTY	BRAND
1	PLC	Programmable Controller	1	Japan MITSUBISHI
		Module Converter
		Communication Interface
		Expansion I / O
2	Spindle motor	5.5kW	1	Japan SUMITOMO
3	Servo motor	1.3KW	1	Japan YASKAWA
4	Servo driver	1.3KW	1
5	Servo motor	0.85KW	1
6	Servo driver	0.85KW	1
7	low-voltage apparatus			German SIEMENS
8	Business computer (LCD screen)		1	LENOVO
9	Proximity switch	Normally open	1	AUTONICS
10		Normally close	1
11	Oil pump motor	2.2kW	1
12	Vane pump	VP30	1	America Denison
13	Ball screw	All	All	Taiwan HIWIN
14	Linear guide	All	All	Taiwan HIWIN

If any part model is upgraded or changed, we promise to use same quality level part to replace it. Every change will be based on written form, which is agreed by each party.
Spare parts list:

No.	Name	Model	Qty.	Remark
1	Proximity switch	Normally open	1	AUTONICS
2	Proximity switch	Normally close	1	AUTONICS
3	O ring	50×3.1,93×3.5	1 for each
4	combination seal washer	10,14	1 for each
5	J type dust ring	28	1
6	Ladder seal ring	Sd0280	1
7	YX type ring	D28	1
8	Slip ring	HD0500	1
9	Lip seal	FB65×85	1
10	Reduction sleeves	4#-3#,3#-2#	1 set
12	Inner hexagon spanner		1 set
13	Adjustable spanner		1
14	Spanner 17-19		1
15	Spanner for quick change drill		1
16	Standby paint		2 pails
17	Operation manual		2 sets
