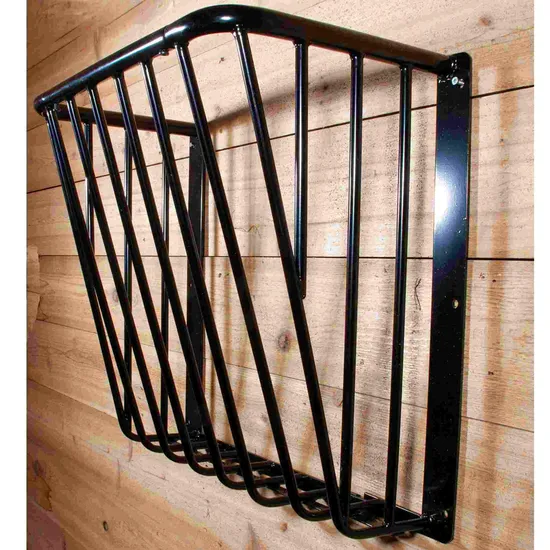

Custom Powder Coated Sheep Hay Panel Barrier Steel Trough Hay Basket and Hay Rack

Product Description

Custom Powder Coated sheep hay Panel Barrier Steel Trough Hay Basket and Hay Rack
We supply one-stop customized service welcome you to inquire with us.
Feed barrier L = 2,46 m with trough W = 0,25 m and hay rack big
Suitable for goats and sheep. Trough can be adjusted to height, 7 cm. Trough can be filled outside the pen. This model has a feeding trough 25 cm wide. Barrier does not allow lambs to get through Hay rack 33 cm. Standard mesh size: 75 mm x 50 mm Hay rack can be used on both sides of the barrier. Height: 1,00 m 31,69 kg

FTD BTR 001	1m	2.5m	25cm trough 26cm hay rack	36,2 kg
FTD BTR 002	1m	2.5m	25cm trough 33cm hay rack	38.5kg
FTD BTR 003	1m	2.5m	30cm trough 26cm hay rack	40.2kg
FTD BTR 004	1m	2.5m	30cm trough 33cm hay rack	42.5kg

Barrier with trough a dvantage: The feed barrier (and/or hay rack) can be filled from outside. Almost everything can be fed in the feed trough.
Feed barrier L = 2,46 m with trough W = 0,25 m
Feed barrier is suitable for goats and sheep. Trough can be adjusted to height, 7 cm. Trough can be filled outside the pen. This model has a feeding trough 25 cm wide. Barrier does not allow lambs to get through. Height = 1,00 m, Weight : 20,19 kg

Framework	7 Horizontal Rails
Side uprights	25mm x 25mm x 1..5mm square section	2pcs
Top Rail& Bottom Rail	22Φx1mm round section	2pcs
Infill rails	21Φx1mm round section	5pcs
Hurdle loop	25 x4mm Flat	2pcs
Brage	25 x3mm Flat	1pcs
Fixings	interlocking up and over mechanism	2pcs
	Plastic end caps = 2 per panel
Finish	Hot dipped zinc galvanised after fabrication to EU. Standards
Height	3ft to top rail
Widths	1.22m (4ft) 1.84m (6ft)
Package	Bundle with plastics strapping, on wood pallet.

1.Fencing Characteristics:
Durable, easy to installation, easy to moved, easy to transportation. Won't break down or collapse when cattle, pigs, sheep or other large livestock run into or rub against it.Welded one piece steel construction,virtually maintenance free,sag resistant,easy to erect, no stretching

2. Fencing Application:
Great for round pens, arenas, paddocks, overnite shows, trail rides and stalls. Designed for your horse safety with rounded corners (no sharp edges).


3.Fencing Advantages:

1.Our livestock cattle panel meets high standard, and is very popular in the market

2.the panel are inter-locking, very sturdy and easy install, no need to dig holes or lay foundations

3.the metal rails are hot dip galvanized before welding, thus has strong capability of anticorrosive.

4.Fencing detailes.

Sheep Hurdle 1 (F-001-0001)
Framework	90cm x 150cm, 8 Horizontal Rails
Side uprights	35mm x 35mm x 2mm square section 2pcs/panel
Top Rail& Bottom Rail	28Φx1.5mm round section 2pcs/panel
Infill rails	22Φx1.5mm round section 6pcs/panel
Pin holes	30mm x 50mm x 5mm Flat
	(hole 16mmx30mm)
Center strip	20mm x 4mm Flat 1pcs/panel
Plastic end caps	2 per panel 2pcs/panel
Finish	Hot dipped zinc galvanized after fabrication to EU. Standards
Height	90cm to top of top rail
