CNC Rubber Strip Cutting Sheet for Rubber Slicing Machine

Product Description

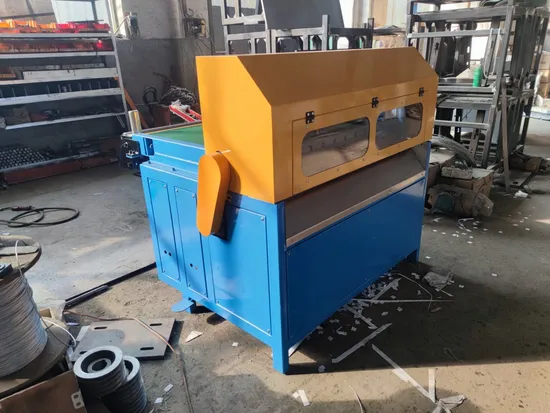

Product Description 1.Our "Rubber Strip Cutting Machine" is optimized in structure.With glass plates positioning in front makes the operation more secure. Feeding platform is made of stainless steel.
2.The blade of the machine is alloy inlaid high speed wear-resistant material, sharp and long life service.
3.PLC+HMI control. Rubber feeding is controlled by PLC and stepper motor,with mechanical-spring material press roller to make the rubber sheet feeding more accurate and smooth,improving the cut precision for the rubber strip.
Easy operation, operator just inputs the desired width in the computer,the right width strip will be cut continuously.During cutting process, you can freely adjust the width of cut material as per your actual need.
4.Our "Rubber Strip Cutting Machine" combines advanced automatic mechanical and electric integration system,it overcome the problem for the normal "strip cutting machine " whose transmission parts could be wore after long time use.
Technical Specification:

Model	XQ-450	XQ-600	XQ-800	XQ-1000
Max. feeding rubber width(mm)	450	600	800	1000
Max. cutting rubber thickness(mm)	20	20	20	20
Max. cut stroke (strip width:mm)	50-70	50-70	50-70	50-70
Cut efficiency	86 times/min	86 times/min	86 times/min	86 times/min
Cut precision	±0.1mm	±0.1mm	±0.1mm	±0.1mm
Motor power(KW)	1.5	1.5	3	3
Dimension(LxWxH:mm)	1050x700x1100	1150x850x1100	1400x1100x1200	1450x1240x1230
Weight(Kg)	500	750	840	970

Packaging & Shipping

Company Information All of our manufacturing partners have more than 10 years of experiences in the field of rubber&plastic
machineries,dozens of experienced engineers and around 200 skilled workers, as well as a considerable number
of precise,digital control, advanced processing machine tools. All ensure every part and details of our machines
with good performance and qualified running test before delivery to our customers on time.

Our Services 1. Professional and quick response to your questions within 24 hours.
2. We will communicate with our production dept. and keep you updated about production progress in time.
3. Customized manufacture available for you.
4. Fast delievery to save your time.
5. Good after sale service will eliminate your worry.
6. Long guarantee period of the quality will reduce your cost and trouble.
7. Professional wooden case packing and ocean shipping control to make your order safe and sound.
8. Full sets of technical documents, instruction manual can be provided.
