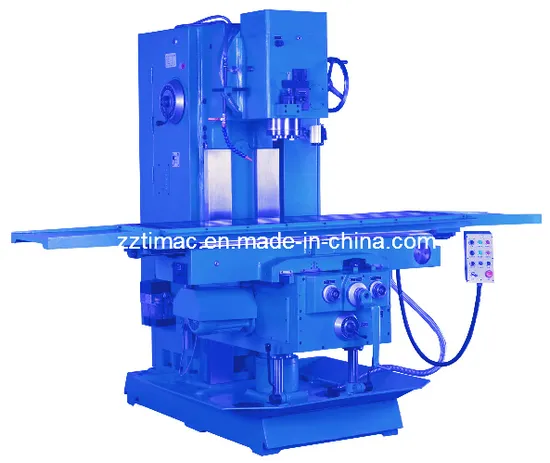

Heavy Duty Vertical Knee-Type Milling Machine

Product Description

HEAVY DUTY VERTICAL KNEE-TYPE MILLING MACHINE
Table size: 500X1800mm, 500X2000mm
Main motor: 15KW
Features:
1. The powerful carrying capacity, great specifications, high rigidity and fine structures.
2. Parts of mainframe of the machine are produced in German resin sand production line and the overall machine boasts higher rigidity and intensity.
3. The vertical guide of column and the horizontal guide of knee are integrated rectangular structure.
4. The matching guide surfaces are filmed with plastic materials to reduce friction coefficient and thereby to reduce dynamic and static friction coefficient value. It has ideal wear resistant, compressive resistant and anticreeping performance.
5. All gears are made by high alloyed steel. New integrated principal drive shift device is equipped.
6. The three-phase motor, located at the left side of the knee, achives feeding in three directions and fast movement through the drive of clutch.
7. PLC device which has high switch on/off speed and frequency controls the movement of the machine and it enables pretty high functional safety coefficient.

Specification	VM500	VM500A
Table surface	500×1800 mm	500×2000 mm
Number of T-slots and slot width	6×18 mm	5×18 mm
Distance between T-slots	63 mm	80 mm
Max. longitudinal travel	1330/1320mm	1530/1520mm
Max. cross travel	360/345mm	360/345mm
Max. vertical travel	630/600mm	630/610mm
Travel of spindle sleeve	90mm	90mm
Swivel angle of the milling head	±45°	±45°
Spindle taper	7:24,NO:50	7:24,NO:50
Spindle grade of speed	18	18
Spindle range of speed	35.5-1800 r/min	45-1800 r/min
Range of feed speeds(X,Y,Z)	16-800, 5-250 mm/min	16-800, 5-250 mm/min
Speed of rapid traverse(X,Y,Z)	3000,1000 mm/min	3000,1000 mm/min
Main motor	15 kw	15 kw
Net weight of machine	4500KG	5000KG
Overall dimensions (L×W×H)	2530×2250×2595mm	3200×2250×2595mm

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
