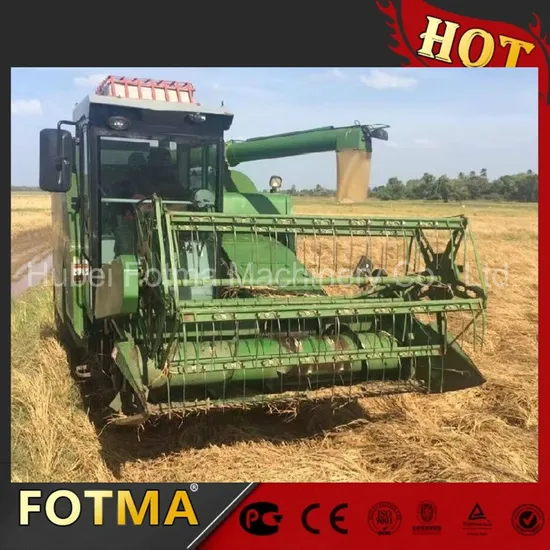

Self-Propelled Whole-Feed Rice Combine Harvester (4LZC-4.0ZB)

Self-Propelled Whole-Feed Rice Combine Harvester (4LZC-4.0ZB)

US$12,000.00-18,000.00 1 unit (MOQ)

Basic Info.

Model NO.
4LZC-4.0ZB
Harvest method
Cutting
Drive Type
Gear Drive
Transmission
Hard Shaft
Portable Harvester Type
Side Hanging Type
Certification
ISO9001:2008, CE
Color
Green
Condition
New
Application Field
Agriculture
Model
4lzc-4.0zb
Feed Quantity(Kg/S)
4.0
Weight(Kg)
2950
Engine Type
4-Cylinder in-Line Water Cooling
Engine Rated Power(Kw)
65
Engine Speed(R/Min)
2600
Engine Fuel
Diesel
Minimum Ground Clearance(mm)
325
Walking Speed(Km/H)
0-5.8
Cutting Width(mm)
2000
Transport Package
in Iron Crates or Assembly
Specification
ISO, CE
Trademark
FOTMA
Origin
China
HS Code
84335100
Production Capacity
20000 PCS/Year

Packaging & Delivery

Package Size
450.00cm * 220.00cm * 230.00cm
Package Gross Weight
4000.000kg

Product Description

Self-Propelled Whole-Feed Rice Combine Harvester (4LZC-4.0ZB)
1. Why choose us?
FOTMA is the leading and professional supplier in China for rice & wheat mini combine harvester!
FOTMA has over than 17 years experience with combine harvester and agricultural machine!
FOTMA can supply the best price and professional service!
FOTMA has good reputation with all world customers!
FOTMA is 13 year Gold Member at Made In China!
2. Product description
Our combine harvesters are high working efficiency and low cost, which is strong power, simple operation, more peace of mind, excellent quality, better durability, large and fast feeding and harvesting.
3. Characteristics
1. The imported HST gearbox is adopted, tailored and specialized for this model to achieve reasonable matching.
2. Equipped with a high-powered engine, giving a strong driving force.
3. Equipped with a wide-swath header, able to achieve large feeding operation.
4. Features
1.65kw engine from excellent manufacturer, which has strong power and reliable performance.
2. Widened beating chamber feeding mouth to make the feeding more uniform and continuous.
3. The integration of the parameters such as the cutter, screw conveyer and transporting chain harrow can provide a better working condition for threshing.
4. Coupled with other threshing components to make the underthreshing and entrained loss uneasy to occur.
5. Adopt external hanging tossing board with independent drive to reach the lowest cleaning loss.
6. Adopt multi-level adjustable centrifugal fan to delaminate the air flow to make the grain cleaner.
7.4-tight-up belt is adopted in threshing cylinder and master driver, which can improve the transferring reliability and working efficiency.
8. Open type guard board and concealed ladders.
5. Technical parameters
Model 4LZC-4.0ZB
Feed Quantity ( kg/s ) 4.0
Dimension Overall length ( mm ) 4990
Overall width ( mm ) 2380
Overall Height ( mm ) 2322
Weight (kg) 2950
Engine Type 4-cylinder in-line water cooling
Rated Power (kW) 65
Speed ( r/min ) 2600
Fuel diesel
Fuel Consumption ( kg/h m2) ≤32
Drive System Track specification 90 mm× 53section× 500mm/450mm
Track gauge 1150
Minimum Ground Clearance ( mm ) 325
Transmission Mechanical + stepless hydraulic speed regulating (HST)
Number of shifting positions stepless speed
Walking Speed 0-5.8
Cutting Reel Type Eccentric drawing-tooth
diameter ( mm ) 900
Cutting Width ( mm ) 2000
Blade Width ( mm ) 2000
Header auger Spiral blade+Eccentric telescopic rod rack
Grain unloading Part Grain unloading method Manual receiving or Mechanical unloading
Grain Tank ( m³ ) 0.33 ( Manual )
Load Schedule 3units/40HQ
Optional configuration Engine 70KW
Track 450mm
Grain Tank 1.0m³ ( Mechanical unloading )

6. Photos
7. Payment
If you would like to get an offer or place an order, Contact us with the products name, model, quantity desired or a description if not listed in our website. All of our prices are for dealership based on wholesale purchase. We offer various payment options such as Wire Transfer (T/T), Letter of Credit at sight, Paypal, Westunion etc.
8. Shipping
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.
9. Contact us
Ms. Mavis Zheng
Hubei FOTMA Machinery Co., Ltd
Add: No. 52 Guanggu Avenue, Hongshan, Wuhan city, Hubei Province, P.R.China.
